TE Connectivity AMP Connectors 1-770669-4 — Pin Headers

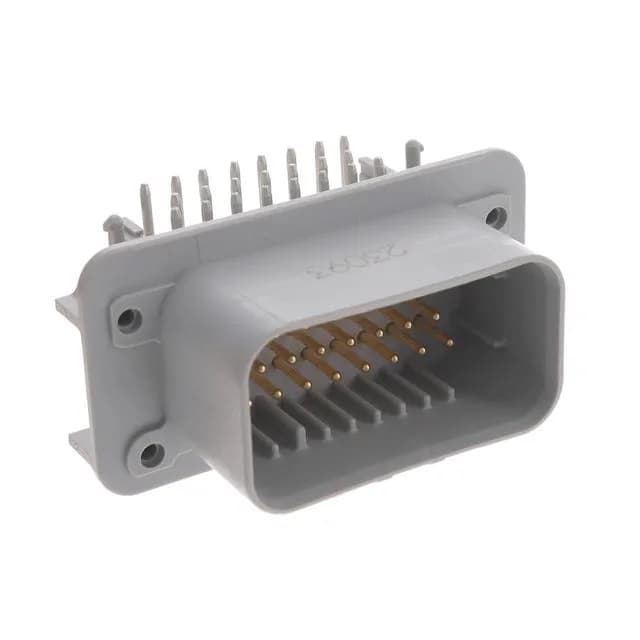

1-770669-4 TE AMPSEAL Header, 23 Pos, 4mm, R/A, Sealable

MPN1-770669-4
Active

TE Connectivity AMP Connectors, AMPSEAL series, Board to Cable/Wire header, 23 positions, 4.00mm pitch, 3 rows, right-angle, panel mount / through hole, shrouded - 4 wall, locking ramp, sealable, Gray PBT housing, Gold-Palladium contacts, -40°C ~ 125°C, 250VAC.

$15.6800Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 1-770669-4 datasheet (PDF)
RoHSRoHS Compliant
SeriesAMPSEAL
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

1-770669-4 key specifications
ParameterValue
SeriesAMPSEAL
TypeMale Pin
MountingPanel Mount, Through Hole, Right Angle
Connector typeHeader
Fastening typeLocking Ramp
Voltage rating250VAC
Current ratingVaries by Wire Gauge
Operating temperature-40°C ~ 125°C
Contact materialBrass
Insulation colorGray
Insulation materialPolybutylene Terephthalate (PBT), Glass Filled
StyleBoard to Cable/Wire

All specifications

1-770669-4 additional specifications
ParameterValue
PackageBulk
FeaturesBoard Guide, Sealable
ShroudingShrouded - 4 Wall
TerminationSolder
ApplicationsAutomotive, Industrial
Contact shapeCircular
Rows3
Pitch0.157\" (4.00mm)
Positions23
Row spacing - mating0.157\" (4.00mm)
Contact finish - matingGold-Palladium

Product details

Right-angle panel-mount layout for sealed harnesses

The 4.00mm pitch and 0.157" row spacing set the footprint for the mating receptacle and PCB layout. Its right-angle orientation and combined panel-mount / through-hole termination allow the connector to be anchored to both the enclosure wall and the PCB, handling the mechanical strain of a sealed mate in automotive and industrial environments.

Sealing and retention in the mating interface

The board guide aligns the two halves during assembly, reducing pin damage in a production line or field service setting. Contacts are male pin, circular, made of brass with a Gold-Palladium mating finish — the palladium layer extends mating cycle life beyond standard gold flash, relevant for connectors that see repeated connect/disconnect during vehicle assembly or module swap-out.

Frequently asked questions

Is 1-770669-4 a through-hole header?

Yes, the termination is Solder and the mounting type includes Through Hole, along with Panel Mount and Right Angle. The through-hole tails are soldered into the PCB, while the panel flange secures the connector body to the enclosure.

What is the closest pin-compatible alternative to 1-770669-4?

No pin-compatible alternative is listed in the AMPSEAL series. The 1-770669-4 is a specific 23-position, 3-row, right-angle, sealable header. For a different circuit count or orientation, review other AMPSEAL headers under base number 770669, but verify the footprint and locking ramp compatibility with your mating receptacle.
