TE Connectivity AMP Connectors 1-770872-0 — Pin Headers

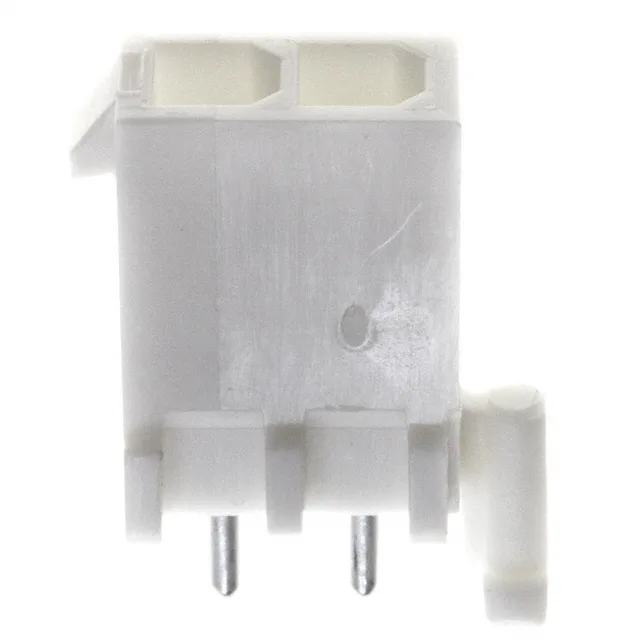

1-770872-0 TE Connectivity Header 2POS 4.14mm Pitch

MPN1-770872-0
Active

TE Connectivity AMP Connectors Mini-Universal MATE-N-LOK header, 1-770872-0, 2-position single-row, 0.163" (4.14mm) pitch, through-hole solder termination, shrouded 4-wall, locking ramp, board lock, tin-plated contacts, UL94 V-0 nylon, -20°C to 85°C, 600VAC.

$1.2700Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesMini-Universal MATE-N-LOK
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — typically 7–15 days door-to-door
Independent China distributor & sourcing agent· Listing updated Aug 2026

Specifications

1-770872-0 key specifications
ParameterValue
SeriesMini-Universal MATE-N-LOK
TypeMale Pin
MountingThrough Hole
Connector typeHeader
Fastening typeLocking Ramp
Voltage rating600VAC
Current ratingVaries by Wire Gauge
Operating temperature-20°C ~ 85°C
Contact materialBrass
Insulation colorWhite
Insulation height0.531\" (13.50mm)
Insulation materialPolyamide (PA), Nylon

All specifications

1-770872-0 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageBulk
FeaturesBoard Lock
ShroudingShrouded - 4 Wall
TerminationSolder
ApplicationsGeneral Purpose
Contact shapeCircular
Rows1
Pitch0.163\" (4.14mm)
Positions2
Contact finish - postTin
Contact length - post0.175\" (4.45mm)
Contact finish - matingTin
Contact finish thickness - post150.0µin (3.81µm)
Contact finish thickness - mating150.0µin (3.81µm)

Product details

2-position 4.14mm pitch header for board-to-wire harnesses

The 1-770872-0: This is a vertical through-hole header from the Mini-Universal MATE-N-LOK series, with 2 positions in a single row at 0.163" (4.14mm) pitch.

Through-hole mount with board lock for wave-solder retention

Termination is through-hole solder, with the board lock feature providing additional mechanical retention to the PCB during wave soldering and against cable strain. The contact post length of 0.175" (4.45mm) suits standard PCB thicknesses, and the insulation height of 0.531" (13.50mm) leaves clearance for mating connectors.

Tin-plated contacts and UL94 V-0 housing for general-purpose duty

Frequently asked questions

What is the mating connector for 1-770872-0?

This header mates with Mini-Universal MATE-N-LOK receptacle housings (e.g., 1-770849-0 series) using the corresponding crimp terminals. The locking ramp engages with the receptacle latch for a vibration-resistant connection.

Is 1-770872-0 a through-hole or SMD header?

It is a through-hole header with solder termination, not SMD. The board lock feature aids retention during wave soldering.
