4.14mm pitch right-angle header for board-to-cable harnesses

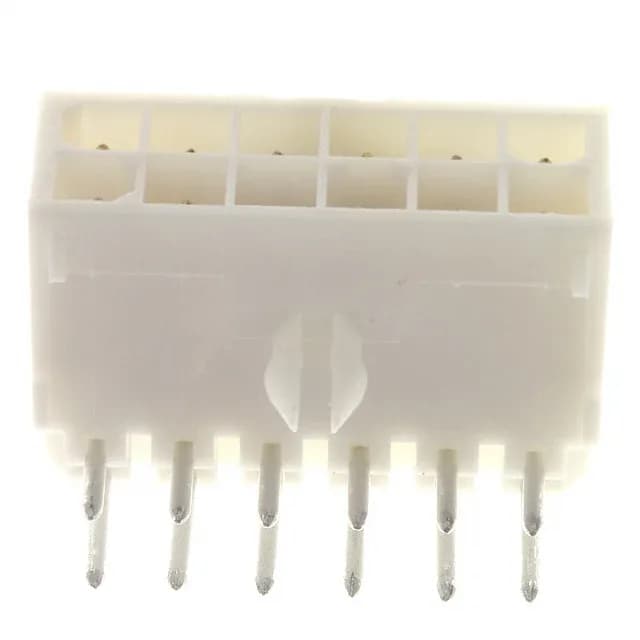

The 1-770972-1: This is a 12-position, dual-row header from TE's Mini-Universal MATE-N-LOK series, designed for board-to-cable/wire applications. The 4.14mm pitch sets the PCB footprint and the per-contact current ceiling — the current rating varies by wire gauge, but the 0.163" spacing keeps the contact temperature rise within the UL94 V-0 nylon housing limits. The right-angle orientation places the mating face parallel to the board, useful for cable exits at the board edge in space-constrained enclosures. The header is shrouded on all four walls, protecting the male pins during handling and guiding the mating receptacle into alignment.
30 µinch gold mating contacts and board lock anchor
The solder tails are tin-plated (150.0µin) for reliable solder joint wetting. A board lock feature (two integral plastic pegs) anchors the header to the PCB during soldering and provides additional shear resistance against cable strain after assembly. The insulation height is 0.386" (9.80mm), which sets the z-height clearance needed on the board.
