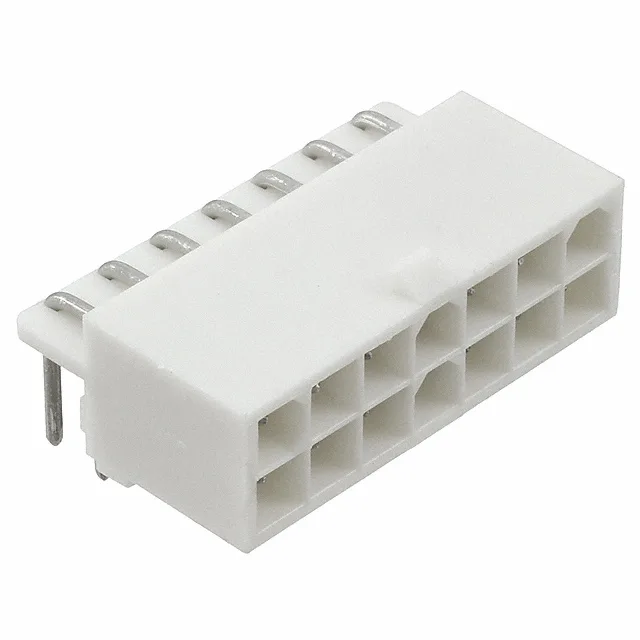

TE Connectivity AMP Connectors Mini-Universal MATE-N-LOK header, 1-770973-0, board-to-cable/wire, 14 positions, dual-row, 4.14mm pitch, right-angle through-hole, shrouded, locking ramp, tin-plated contacts, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | Mini-Universal MATE-N-LOK |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Locking Ramp |
| Voltage rating | 600VAC |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -20°C ~ 85°C |
| Contact material | Brass |
| Insulation color | White |
| Insulation height | 0.386\" (9.80mm) |
| Insulation material | Polyamide (PA), Nylon |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Features | Board Lock |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose |
| Contact shape | Circular |
| Rows | 2 |
| Pitch | 0.163\" (4.14mm) |
| Positions | 14 |
| Row spacing - mating | 0.163\" (4.14mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.145\" (3.68mm) |
| Contact finish - mating | Tin |
| Contact finish thickness - post | 150.0µin (3.81µm) |
| Contact finish thickness - mating | 150.0µin (3.81µm) |
It uses a 4.14mm pitch and row spacing, mates with standard Mini-Universal MATE-N-LOK receptacles via a locking ramp, and includes a board lock for secure through-hole mounting.
The shrouded - 4 wall design protects the male pins and guides the receptacle during mating, reducing misalignment risk.
Yes. The locking ramp fastening and 4.14mm pitch are designed to mate with standard Mini-Universal MATE-N-LOK receptacle housings. The 14-position, dual-row arrangement matches the corresponding receptacle cavity count.
Yes, it includes a board lock that anchors the header to the PCB during soldering and provides additional mechanical retention against vibration.
The current rating varies by wire gauge used in the mating receptacle. For a given wire size, consult the Mini-Universal MATE-N-LOK derating curves in the product specification.
