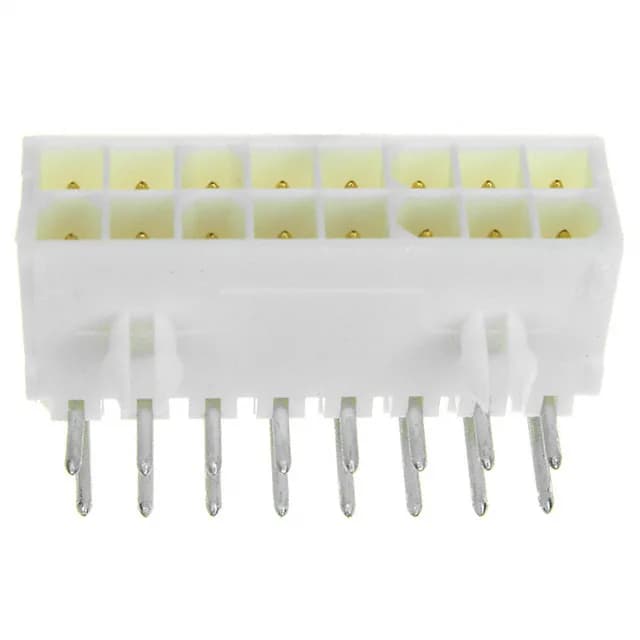

TE Connectivity AMP Mini-Universal MATE-N-LOK, Header, 16 Positions, 0.163" (4.14 mm) Pitch, Through Hole, Right Angle, Gold Mating Contact, Shrouded - 4 Wall, Board Lock, Active
| Parameter | Value |
|---|---|
| Series | Mini-Universal MATE-N-LOK |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Locking Ramp |
| Voltage rating | 600VAC |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -20°C ~ 105°C |
| Contact material | Brass |
| Insulation color | White |
| Insulation height | 0.386\" (9.80mm) |
| Insulation material | Polyamide (PA), Nylon |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Features | Board Lock |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose |
| Contact shape | Circular |
| Rows | 2 |
| Pitch | 0.163\" (4.14mm) |
| Positions | 16 |
| Row spacing - mating | 0.163\" (4.14mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.145\" (3.68mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 150.0µin (3.81µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 1-770974-1: This 16-position header from the Mini-Universal MATE-N-LOK series is a through-hole, right-angle part with a full 4-wall shroud — the shrouding protects the male pins during handling and guides the mating receptacle into alignment. The 0.163" (4.14 mm) pitch matches the standard Mini-Universal MATE-N-LOK receptacle spacing, so it mates directly with the matching 16-position receptacle housing and crimp terminals.
No pin-compatible cross-reference or direct equivalent is recorded for this specific order code within the Mini-Universal MATE-N-LOK series. The base product number is 770974; any alternative would need to match the 16-position, 4.14 mm pitch, right-angle, gold-plated, shrouded configuration.
