TE Connectivity AMP Connectors 1-776163-1 — Pin Headers

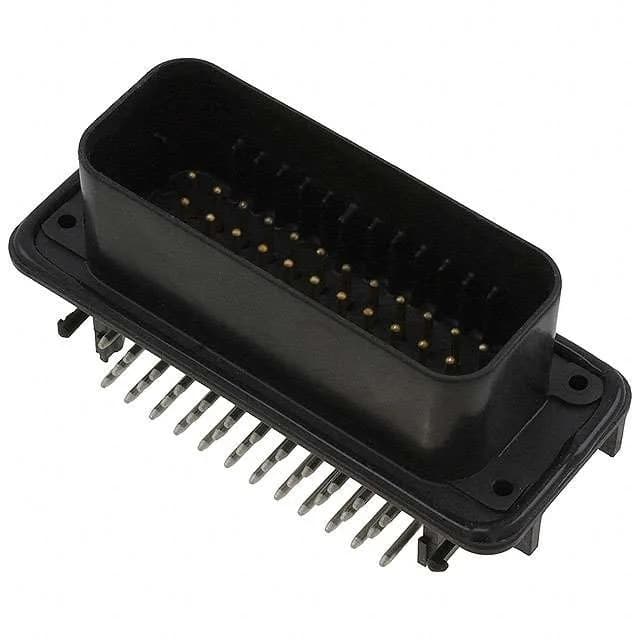

1-776163-1 TE AMPSEAL Header 35 Pos 4mm RA Sealed

MPN1-776163-1
Active

TE Connectivity AMPSEAL series, 1-776163-1, Board to Cable/Wire header, 35 positions, 3 rows, 4.00mm pitch, right-angle, shrouded, sealed, locking ramp, Panel Mount / Through Hole / Right Angle, -40°C ~ 125°C, Gold-Palladium contact finish

$20.7300Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 1-776163-1 datasheet (PDF)
RoHSROHS3 Compliant
SeriesAMPSEAL
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

1-776163-1 key specifications
ParameterValue
SeriesAMPSEAL
TypeMale Pin
MountingPanel Mount, Through Hole, Right Angle
Connector typeHeader
Fastening typeLocking Ramp
Voltage rating250VAC
Current ratingVaries by Wire Gauge
Operating temperature-40°C ~ 125°C
Contact materialBrass
Insulation colorBlack
Insulation materialPolybutylene Terephthalate (PBT), Glass Filled
StyleBoard to Cable/Wire

All specifications

1-776163-1 additional specifications
ParameterValue
PackageBulk
FeaturesBoard Guide, Sealed
ShroudingShrouded - 4 Wall
TerminationSolder
ApplicationsAutomotive, Industrial
Contact shapeCircular
Rows3
Pitch0.157\" (4.00mm)
Positions35
Row spacing - mating0.157\" (4.00mm)
Contact finish - matingGold-Palladium

Product details

35-position sealed header for automotive and industrial harnesses

The 1-776163-1 is a 35-position, 3-row header from the TE Connectivity AMPSEAL series, designed for board-to-cable/wire applications where a sealed, vibration-resistant connection is required. Its 4.00mm pitch and 0.157" row spacing match the AMPSEAL receptacle footprint, and the right-angle orientation routes the cable parallel to the PCB — a common layout in engine control units and industrial I/O modules.

Mounting and environmental range

This header supports three mounting methods: panel mount, through-hole solder, and right-angle PCB mount — the panel-mount option secures the connector body to an enclosure wall before soldering, simplifying assembly in sealed enclosures.

Frequently asked questions

What is the mounting type of 1-776163-1?

The header supports panel mount, through-hole, and right-angle mounting.

Is the 1-776163-1 sealed for water resistance?

Yes, the features list includes 'Sealed', and the shrouded 4-wall housing with locking ramp provides environmental protection against moisture and debris when mated with the corresponding AMPSEAL receptacle.

What is the mating connector for 1-776163-1?

The 1-776163-1 mates with an AMPSEAL series receptacle (board-to-cable/wire style) that has 35 positions in 3 rows at 4.00mm pitch. Confirm the specific receptacle order code with your harness design.

What is the pitch of 1-776163-1?

The mating pitch is 4.00mm (0.157") between contacts, and the row-to-row spacing is also 4.00mm (0.157").
