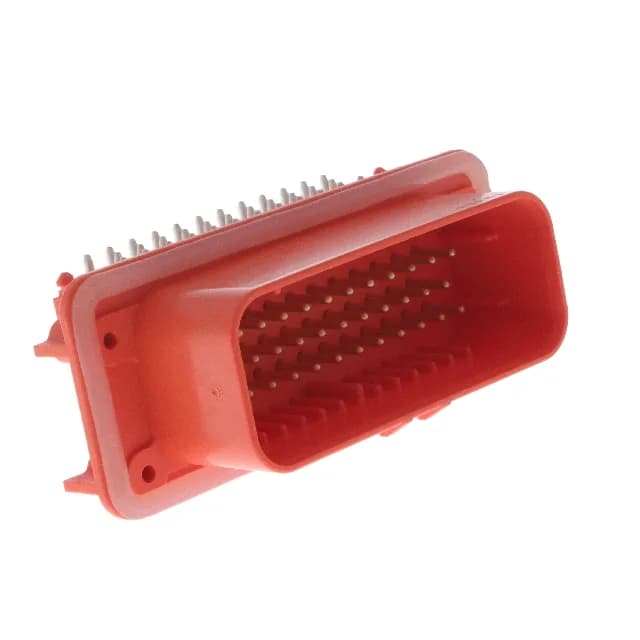

The 1-776163-6 is a 35-position, 4.00 mm pitch header from the TE AMPSEAL series, designed for sealed board-to-cable/wire connections in automotive and industrial applications. It features a shrouded 4-wall housing, locking ramp fastening, and a right-angle through-hole mount, making it suitable for environments where vibration resistance and a sealed interface are required.
Pitch, positions, and board-fit check
With a 4.00 mm pitch and 35 positions loaded in a 3-row arrangement, this header demands a PCB layout that accommodates the row spacing of 4.00 mm and the right-angle solder tails.
