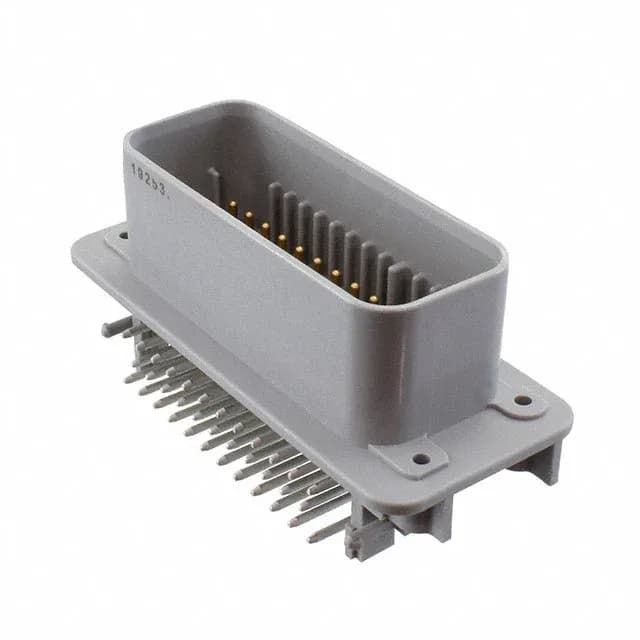

TE Connectivity AMPSEAL header, 1-776180-4, 35 positions, 4.00mm pitch, right-angle through-hole, shrouded 4-wall, locking ramp, sealable, -40°C to 125°C, gold-palladium mating contacts.
| Parameter | Value |
|---|---|
| Series | AMPSEAL |
| Type | Male Pin |
| Mounting | Panel Mount, Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Locking Ramp |
| Voltage rating | 250VAC |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -40°C ~ 125°C |
| Contact material | Brass |
| Insulation color | Gray |
| Insulation material | Polybutylene Terephthalate (PBT), Glass Filled |
| Style | Board to Cable/Wire |
| Parameter | Value |
|---|---|
| Package | Bulk |
| Features | Board Guide, Sealable |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, Industrial |
| Contact shape | Circular |
| Rows | 3 |
| Pitch | 0.157\" (4.00mm) |
| Positions | 35 |
| Row spacing - mating | 0.157\" (4.00mm) |
| Contact finish - mating | Gold-Palladium |
The 4.00mm pitch and 0.157" row spacing keep the footprint compatible with standard AMPSEAL crimp housings.
The -40°C to 125°C operating range covers underhood automotive and industrial cabinet duty without derating the housing material (PBT, glass-filled).
RoHS compliant per TE's current certification. Supplied in bulk packaging.
The mating pitch is 4.00mm (0.157") with the same row spacing.
The header is listed as sealable and includes a board guide. It is designed to mate with a sealed AMPSEAL receptacle for an IP-rated interface.
