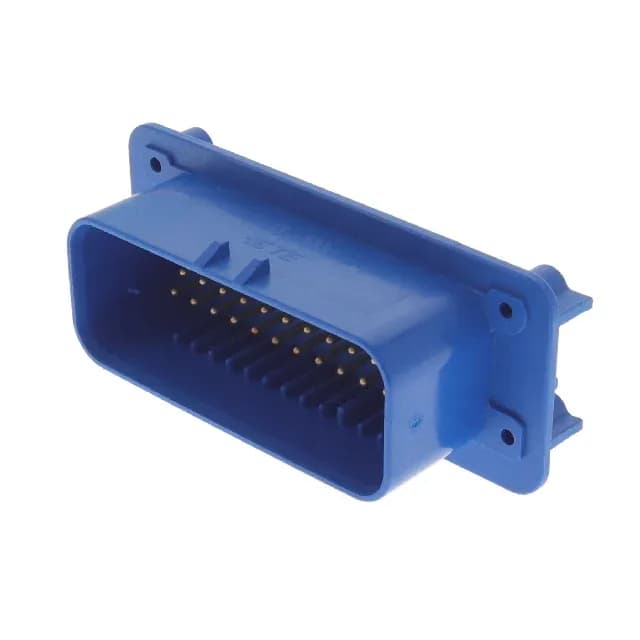

TE Connectivity AMPSEAL series, 1-776180-5, Board to Cable/Wire header, 35 circuits, 4.00 mm pitch, right-angle through-hole, sealed, locking ramp, -40°C to 125°C.
| Parameter | Value |
|---|---|
| Series | AMPSEAL |
| Type | Male Pin |
| Mounting | Panel Mount, Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Locking Ramp |
| Voltage rating | 250VAC |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -40°C ~ 125°C |
| Contact material | Brass |
| Insulation color | Blue |
| Insulation material | Polybutylene Terephthalate (PBT), Glass Filled |
| Style | Board to Cable/Wire |
| Parameter | Value |
|---|---|
| Package | Bulk |
| Features | Board Guide, Sealable |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, Industrial |
| Contact shape | Circular |
| Rows | 3 |
| Pitch | 0.157\" (4.00mm) |
| Positions | 35 |
| Row spacing - mating | 0.157\" (4.00mm) |
| Contact finish - mating | Gold-Palladium |
The sealable feature, combined with the -40°C to 125°C operating range, makes this header a fit for under-hood automotive and industrial environments.
At 4.00 mm mating pitch with a 0.157" row spacing, the 35 positions are arranged in 3 rows.
Yes. The AMPSEAL series is designed as a sealable connector, and the 1-776180-5 header includes a sealable feature with a shrouded 4-wall housing. The -40°C to 125°C operating temperature range covers under-hood thermal cycling. The locking ramp fastening type provides vibration resistance. The current rating varies by wire gauge, so confirm the terminal and wire size for your specific circuit load.
The 1-776180-5 is a 35-position header with all positions loaded, arranged in 3 rows at 4.00 mm pitch. The pinout is defined by the mating AMPSEAL receptacle housing; the header itself has no internal circuit-to-pin mapping beyond the row and column layout. Refer to the TE AMPSEAL application drawing for the specific cavity numbering.
