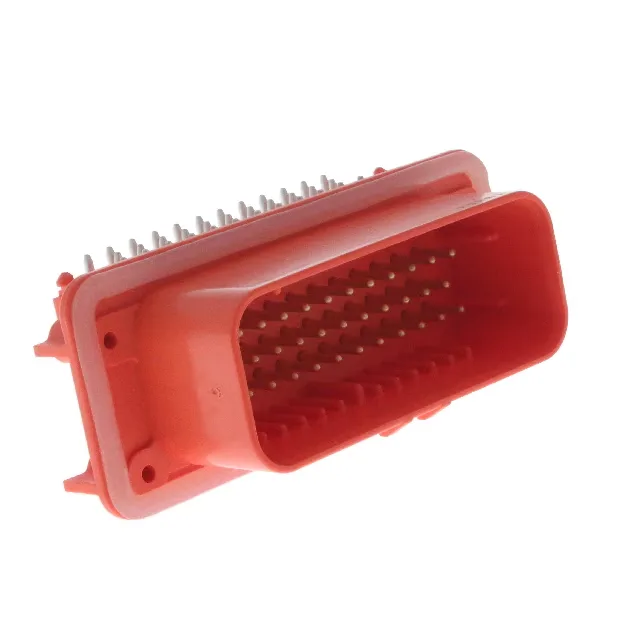

TE Connectivity AMP Connectors 1-776180-6
MPN1-776180-6
Active
CONN HEADER R/A 35POS 4MM
$18.93Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesAMPSEAL
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | AMPSEAL |
| Type | Male Pin |
| Mounting | Panel Mount, Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Locking Ramp |
| Voltage rating | 250VAC |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -40°C ~ 125°C |
| Contact material | Brass |
| Insulation color | Orange |
| Insulation material | Polybutylene Terephthalate (PBT), Glass Filled |
| Style | Board to Cable/Wire |
All specifications
| Parameter | Value |
|---|---|
| Package | Bulk |
| Features | Board Guide, Sealable |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, Industrial |
| Contact shape | Circular |
| Rows | 3 |
| Pitch | 0.157\" (4.00mm) |
| Positions | 35 |
| Row spacing - mating | 0.157\" (4.00mm) |
| Contact finish - mating | Gold-Palladium |
