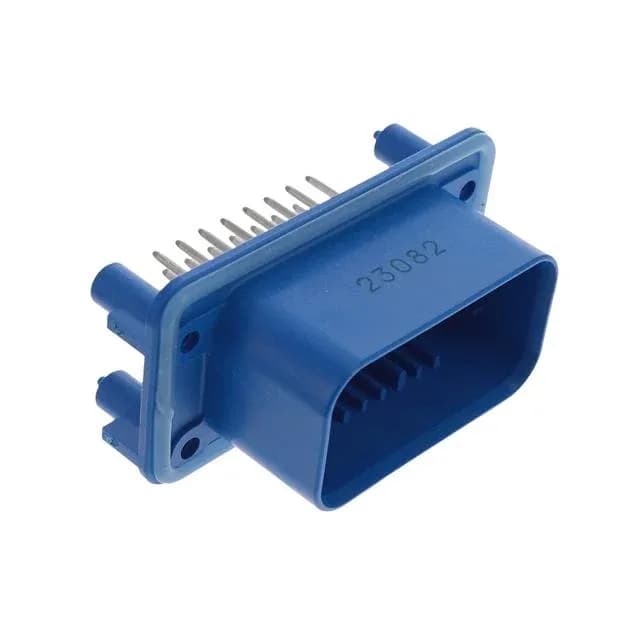

TE Connectivity AMP Connectors AMPSEAL header, 23-position, 4.00mm pitch, 3-row, vertical, panel-mount through-hole, shrouded 4-wall, locking ramp, sealed with mounting flange, male pin, gold-palladium contacts, -40°C to 125°C, 250VAC.
| Parameter | Value |
|---|---|
| Series | AMPSEAL |
| Type | Male Pin |
| Mounting | Panel Mount, Through Hole |
| Connector type | Header |
| Fastening type | Locking Ramp |
| Voltage rating | 250VAC |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -40°C ~ 125°C |
| Contact material | Brass |
| Insulation color | Blue |
| Insulation material | Polybutylene Terephthalate (PBT), Glass Filled |
| Style | Board to Cable/Wire |
| Parameter | Value |
|---|---|
| Package | Bulk |
| Features | Mounting Flange, Sealed |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, Industrial |
| Contact shape | Circular |
| Rows | 3 |
| Pitch | 0.157\" (4.00mm) |
| Positions | 23 |
| Row spacing - mating | 0.157\" (4.00mm) |
| Contact finish - mating | Gold-Palladium |
The 1-776228-5: This is a TE Connectivity AMPSEAL header, 23 circuits across 3 rows on a 4.00mm pitch. The blue PBT housing carries gold-palladium plated male pins and is sealed for automotive and industrial environments.
The 4.00mm pitch and 0.157" row spacing set the board footprint for a 23-position, 3-row layout. Voltage rating is 250VAC.
This AMPSEAL header mates with the corresponding AMPSEAL receptacle housing and crimp terminals. The locking ramp and mounting flange are part of the sealed interface — confirm the receptacle part number with your wire harness assembly drawing.
Yes, it is ROHS3 compliant.
The header has 23 positions loaded in 3 rows. The pinout is defined by the mating receptacle — consult the AMPSEAL series application drawing for the circuit assignment.
