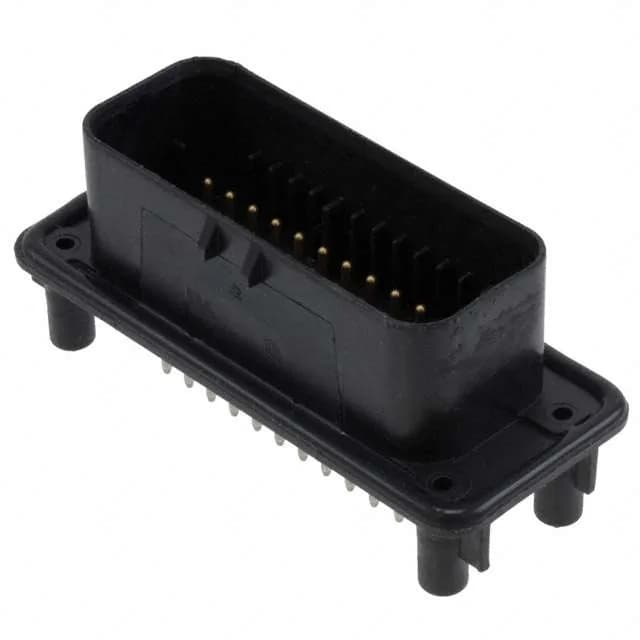

1-776231-1 TE AMPSEAL Header 35 Pos 4mm Sealed

MPN1-776231-1
Active

TE Connectivity AMP Connectors AMPSEAL series, 1-776231-1, Board to Cable/Wire header, 35 positions, 4.00mm pitch, 3 rows, shrouded - 4 wall, locking ramp, sealed with mounting flange, panel mount, through hole, solder termination, black PBT housing, gold-palladium plated male pins.

$20.5100Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesAMPSEAL
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

1-776231-1 key specifications
ParameterValue
SeriesAMPSEAL
TypeMale Pin
MountingPanel Mount, Through Hole
Connector typeHeader
Fastening typeLocking Ramp
Voltage rating250VAC
Current ratingVaries by Wire Gauge
Operating temperature-40°C ~ 125°C
Contact materialBrass
Insulation colorBlack
Insulation materialPolybutylene Terephthalate (PBT), Glass Filled
StyleBoard to Cable/Wire

All specifications

1-776231-1 additional specifications
ParameterValue
PackageBulk
FeaturesMounting Flange, Sealed
ShroudingShrouded - 4 Wall
TerminationSolder
ApplicationsAutomotive, Industrial
Contact shapeCircular
Rows3
Pitch0.157\" (4.00mm)
Positions35
Row spacing - mating0.157\" (4.00mm)
Contact finish - matingGold-Palladium

Product details

Sealed 35-position header for harsh environments

Its sealed construction and mounting flange make it suitable for automotive and industrial environments where moisture and contaminants are present.

Key features for fit and reliability

The 4-wall shrouding and locking ramp fastening provide positive retention and misalignment protection during mating, critical for vibration-prone installations. The header is panel-mountable with a mounting flange, and the through-hole solder termination secures it to the PCB while the flange takes the cable strain off the solder joints.

Frequently asked questions

What is the mating connector for 1-776231-1?

This AMPSEAL header mates with the corresponding AMPSEAL receptacle housing (not included). The 4.00mm pitch, 3-row, 35-position layout and locking ramp fastening require the matching AMPSEAL female housing and crimp terminals — confirm the housing part number with the TE Connectivity AMPSEAL series documentation.

Is the 1-776231-1 header sealed?

Yes, the 1-776231-1 includes 'Sealed' as a listed feature along with a mounting flange, indicating the header is designed for sealed applications typical in automotive and industrial environments. The operating temperature range of -40°C to 125°C supports harsh-condition use.
