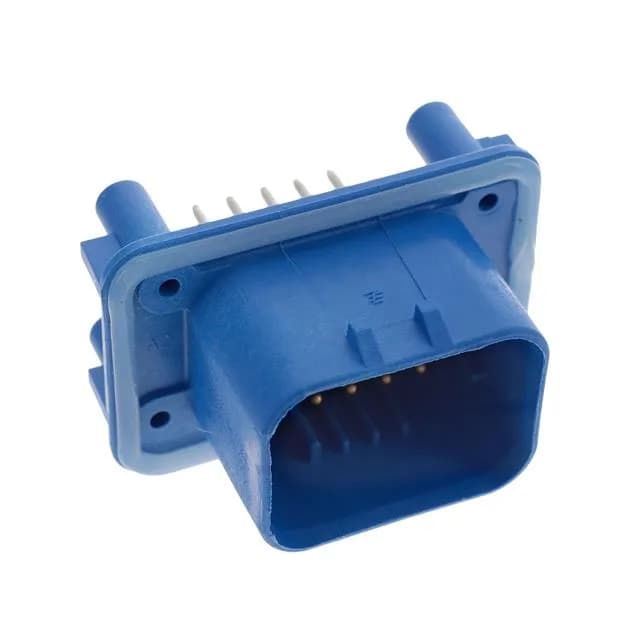

TE Connectivity AMP Connectors AMPSEAL series, Board to Cable/Wire, Header, Male Pin, 14 Positions, 4.00mm Pitch, Shrouded - 4 Wall, Sealed, Panel Mount, Through Hole, Solder Termination, Locking Ramp, Blue Insulation, -40°C ~ 125°C, 250VAC, Gold-Palladium Contact Finish
| Parameter | Value |
|---|---|
| Series | AMPSEAL |
| Type | Male Pin |
| Mounting | Panel Mount, Through Hole |
| Connector type | Header |
| Fastening type | Locking Ramp |
| Voltage rating | 250VAC |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -40°C ~ 125°C |
| Contact material | Brass |
| Insulation color | Blue |
| Insulation material | Polybutylene Terephthalate (PBT), Glass Filled |
| Style | Board to Cable/Wire |
| Parameter | Value |
|---|---|
| Package | Bulk |
| Features | Mounting Flange, Sealed |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, Industrial |
| Contact shape | Circular |
| Rows | 3 |
| Pitch | 0.157\" (4.00mm) |
| Positions | 14 |
| Row spacing - mating | 0.157\" (4.00mm) |
| Contact finish - mating | Gold-Palladium |
The 1-776262-5 is a 14-position, 3-row header from the TE AMPSEAL series, designed for sealed board-to-cable/wire connections in automotive and industrial applications. Its 4.00 mm pitch and 0.157" row spacing match the AMPSEAL receptacle family, and the shrouded 4-wall design protects pins during mating. The locking ramp fastening system provides a positive retention under vibration, while the mounting flange secures the header to the panel.
The mating pitch is 0.157" (4.00 mm), with the same row spacing.
