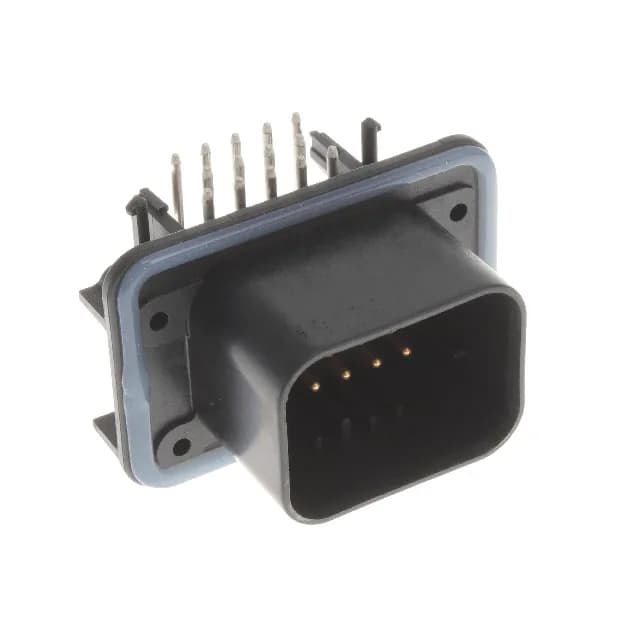

TE Connectivity AMPSEAL header, 1-776267-1, 14-position, 4.00mm pitch, right-angle, shrouded, sealed, locking ramp, male pin, panel mount / through hole, -40°C to 125°C, 250VAC
| Parameter | Value |
|---|---|
| Series | AMPSEAL |
| Type | Male Pin |
| Mounting | Panel Mount, Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Locking Ramp |
| Voltage rating | 250VAC |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -40°C ~ 125°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation material | Polybutylene Terephthalate (PBT), Glass Filled |
| Style | Board to Cable/Wire |
| Parameter | Value |
|---|---|
| Package | Tray |
| Features | Board Guide, Sealed |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, Industrial |
| Contact shape | Circular |
| Rows | 3 |
| Pitch | 0.157\" (4.00mm) |
| Positions | 14 |
| Row spacing - mating | 0.157\" (4.00mm) |
| Contact finish - mating | Gold-Palladium |
The 1-776267-1: This is a 14-position, 4.00mm pitch header from the TE AMPSEAL series, terminated by solder to a through-hole board. The housing is sealed and shrouded on all four walls, with a locking ramp that holds the mating connector under vibration.
Yes, the AMPSEAL series is designed for automotive and industrial environments.
