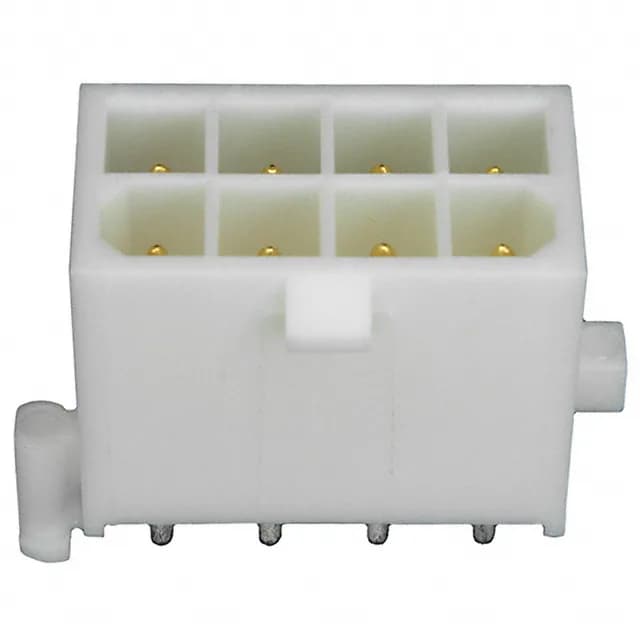

TE Connectivity AMP Connectors Mini-Universal MATE-N-LOK header, 1-794073-1, 8 circuits, 4.14 mm pitch, shrouded 4-wall, gold-plated male pins, board lock, through-hole solder termination.
| Parameter | Value |
|---|---|
| Series | Mini-Universal MATE-N-LOK |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Locking Ramp |
| Voltage rating | 600VAC |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -20°C~105°C |
| Contact material | Brass |
| Insulation color | White |
| Insulation height | 0.531\" (13.50mm) |
| Insulation material | Polyamide (PA), Nylon |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Features | Board Lock |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose |
| Contact shape | Circular |
| Rows | 2 |
| Pitch | 0.163\" (4.14mm) |
| Positions | 8 |
| Row spacing - mating | 0.163\" (4.14mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.175\" (4.45mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 150.0µin (3.81µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The base product number 794073 covers the series; the full 1-794073-1 order code includes the board-lock and gold-plating variant. Confirm the mating half — a Mini-Universal MATE-N-LOK receptacle housing with crimp terminals — before committing the BOM line.
The 1-794073-1 is sourced through independent distribution against an RFQ. Submit an RFQ for the exact quantity and lead time.
The base product number is 794073, and the full order code 1-794073-1 specifies the board-lock and gold-plating variant. The 794073 base covers a family of headers; the 1-794073-1 is the specific 8-position, dual-row, board-lock version.
No — the 1-794073-1 is from TE's Mini-Universal MATE-N-LOK series with a 4.14 mm pitch, while Molex Mini-Fit Jr uses a 4.20 mm pitch. The pitch difference means the board footprint and mating interface are not compatible.
