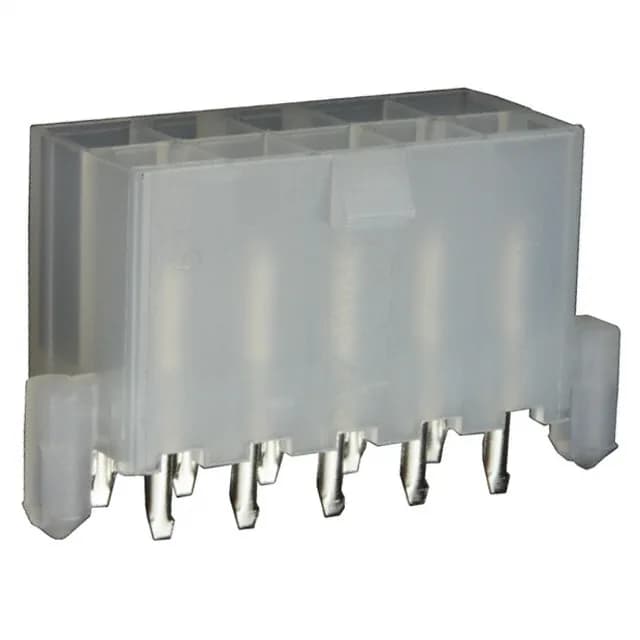

TE Connectivity AMP-DUAC header, order code 1-794306-1, 10 positions, dual row, 0.165" (4.20mm) pitch, 600 VAC, tin-plated mating contacts, through-hole, solder termination, board lock.
| Parameter | Value |
|---|---|
| Series | AMP-DUAC |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Locking Ramp |
| Voltage rating | 600VAC |
| Operating temperature | -55°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Natural |
| Insulation height | 0.504\" (12.80mm) |
| Insulation material | Polyamide (PA), Nylon |
| Material flammability rating | UL94 V-2 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Bulk |
| Features | Board Lock |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.165\" (4.20mm) |
| Positions | 10 |
| Row spacing - mating | 0.165\" (4.20mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.138\" (3.50mm) |
| Contact finish - mating | Tin |
| Contact finish thickness - mating | 118.1µin (3.00µm) |
The 1-794306-1 is a 10-circuit shrouded header from the AMP-DUAC series, rated for board-to-board or cable connections.
TE Connectivity lists the 1-794306-1 as obsolete.
