TE Connectivity AMP Connectors 1-794616-0 — Connector Housings

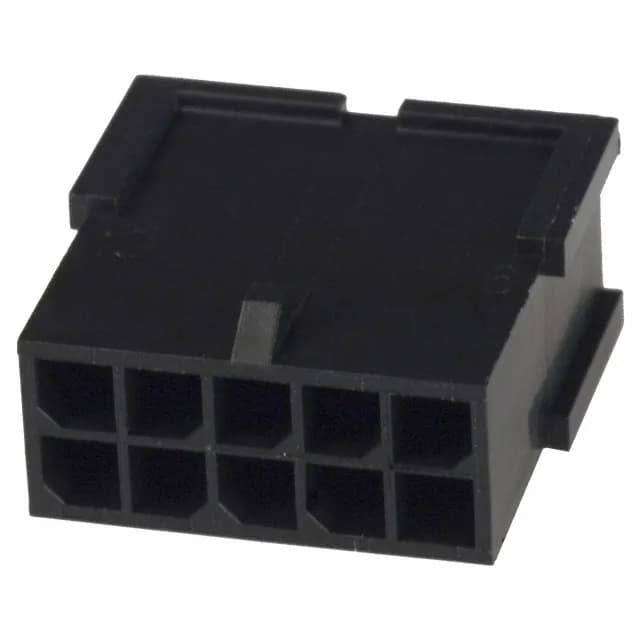

TE Connectivity 1-794616-0 Micro MATE-N-LOK 10-Position

MPN1-794616-0
Active

TE Connectivity Micro MATE-N-LOK, plug housing, 10 positions, 2 rows, 3.00mm pitch, crimp termination, free hanging, locking ramp, -40°C to 105°C, black PA66, RoHS.

$0.6700Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 1-794616-0 datasheet (PDF)
RoHSRoHS Compliant
SeriesMicro MATE-N-LOK
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

1-794616-0 specifications
ParameterValue
SeriesMicro MATE-N-LOK
TypeMale Pin
MountingFree Hanging (In-Line)
Connector typePlug
Fastening typeLocking Ramp
Operating temperature-40°C ~ 105°C
ColorBlack
Insulation materialPolyamide (PA66), Nylon 6/6
NoteContacts Not Included
Pitch0.118\" (3.00mm)
PackageBulk
Row spacing0.118\" (3.00mm)
Rows2
Contact terminationCrimp
Positions10

Product details

The TE Connectivity 1-794616-0 is the 10-position, dual-row plug housing from the Micro MATE-N-LOK series.

The crimp terminals used are the Micro MATE-N-LOK male pin contacts — these are ordered separately under a different TE part number (the specific terminal depends on the wire gauge, typically 20-24 AWG for this series). The housing accepts the terminals before insertion, and the terminal position assurance (TPA) feature in the receptacle side (if used) confirms full seating. No secondary locking device is built into this plug housing itself.

Frequently asked questions

Where can I buy 1-794616-0 and how do I get a price?

No stock-holding or fixed price is published here.

What contacts are compatible with 1-794616-0?

The 1-794616-0 accepts Micro MATE-N-LOK male pin crimp terminals, ordered separately. The specific terminal part number depends on the wire gauge (typically 20-24 AWG for this series). The housing itself does not include contacts.
