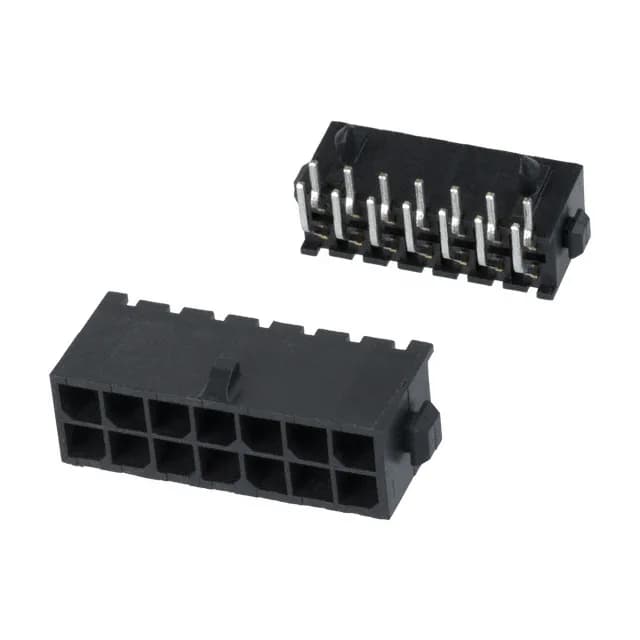

TE Connectivity AMP Connectors Micro MATE-N-LOK header, 1-794620-4, 14 circuits, dual-row, 3.00 mm pitch, right-angle through-hole, shrouded 4-wall, gold-plated mating contacts, board lock, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | Micro MATE-N-LOK |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Locking Ramp |
| Voltage rating | 250V |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.290\" (7.37mm) |
| Insulation material | Polyamide (PA), Nylon |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tray |
| Features | Board Lock |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.118\" (3.00mm) |
| Positions | 14 |
| Row spacing - mating | 0.118\" (3.00mm) |
| Contact finish - post | Tin-Lead |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
Mating contacts are gold over nickel, 30.0 µinch thick. That plating grade supports 500+ mating cycles minimum — in a panel that gets cycled quarterly, the contact interface outlasts the equipment. The solder tails are tin-lead (100.0 µinch), compatible with standard wave-solder profiles.
The base product number is 794620; this variant (1-794620-4) is the 14-position, right-angle, gold-plated version.
The mating half must be 14 circuits, dual-row, 3.00 mm pitch, with a locking ramp feature to engage the header's latch.
