TE Connectivity AMP Connectors 1-794627-4 — Pin Headers, Sockets & Housings

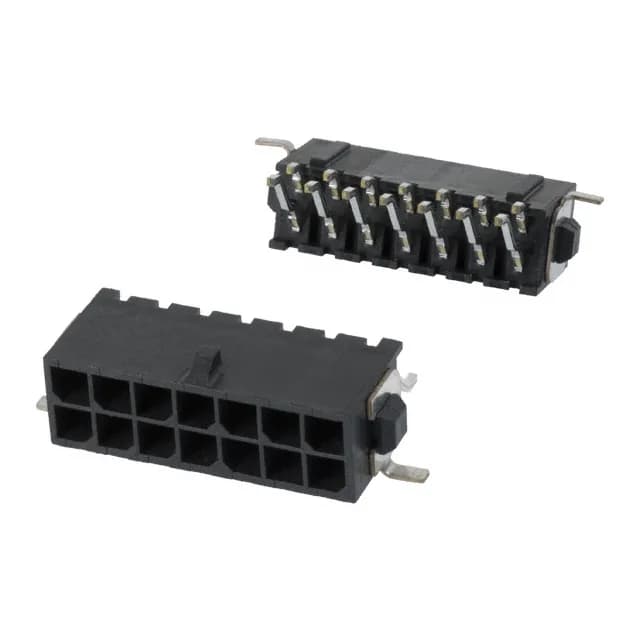

1-794627-4 TE Connectivity Micro MATE-N-LOK Header, 14 Pos

MPN1-794627-4
Obsolete

TE Connectivity AMP Connectors Micro MATE-N-LOK header, order code 1-794627-4, 14 positions, dual row, 0.118" (3.00 mm) pitch, 250 V, tin-lead mating contacts, surface-mount right-angle, solder termination, shrouded - 4 wall, locking ramp.

$3.8100Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 1-794627-4 datasheet (PDF)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026

Specifications

1-794627-4 key specifications
ParameterValue
SeriesMicro MATE-N-LOK
TypeMale Pin
MountingSurface Mount, Right Angle
Connector typeHeader
Fastening typeLocking Ramp
Voltage rating250V
Current ratingVaries by Wire Gauge
Operating temperature-40°C ~ 105°C
Contact materialBrass
Insulation colorBlack
Insulation height0.290\" (7.37mm)
Insulation materialPolyamide (PA), Nylon

All specifications

1-794627-4 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageTape & Reel (TR) Cut Tape (CT)
FeaturesSolder Retention
ShroudingShrouded - 4 Wall
TerminationSolder
ApplicationsGeneral Purpose
Contact shapeSquare
Rows2
Pitch0.118\" (3.00mm)
Positions14
Row spacing - mating0.118\" (3.00mm)
Contact finish - postTin-Lead
Contact finish - matingTin-Lead
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating100.0µin (2.54µm)

Product details

Board-to-wire power header, 14 circuits, 3.00 mm pitch

The 1-794627-4 is the 14-circuit member of TE's Micro MATE-N-LOK header line, a board-to-wire power interconnect rated 250 V with current capacity varying by wire gauge. It carries tin-lead mating contacts, a shrouded 4-wall housing with locking ramp, and mounts surface-mount right-angle with solder termination and solder retention features.

Obsolete — sourcing on request

The 1-794627-4 is listed as Obsolete by TE Connectivity AMP Connectors.
