18-position Micro MATE-N-LOK header
The 1-794627-8 is the 18-circuit member of TE's Micro MATE-N-LOK header line, a shrouded 4-wall board-to-cable/wire header with a locking ramp for vibration-resistant mating.

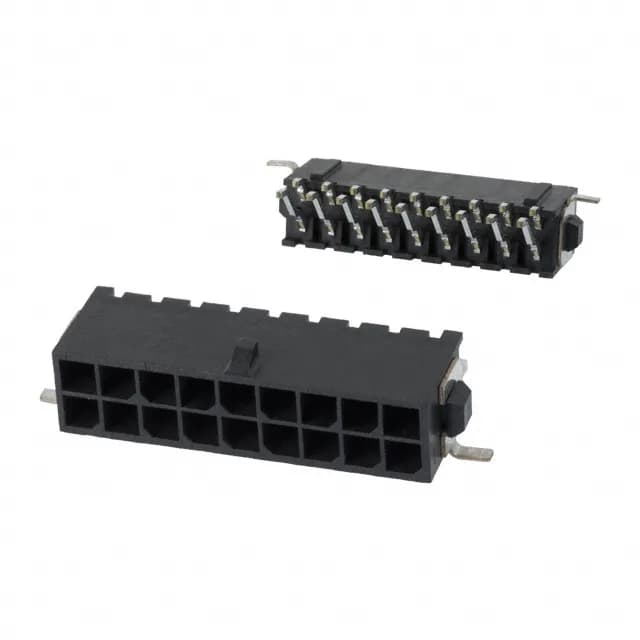

TE 1-794627-8 Micro MATE-N-LOK Header, 18 Pos, Obsolete
MPN1-794627-8
Obsolete
TE Connectivity AMP Connectors Micro MATE-N-LOK header, order code 1-794627-8, 18 positions, dual row, 0.118" (3.00mm) pitch, 250 V, tin-lead mating contacts, surface-mount right-angle, solder termination, locking ramp.
$1.0600Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Micro MATE-N-LOK |
| Type | Male Pin |
| Mounting | Surface Mount, Right Angle |
| Connector type | Header |
| Fastening type | Locking Ramp |
| Voltage rating | 250V |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.290\" (7.37mm) |
| Insulation material | Polyamide (PA), Nylon |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tape & Reel (TR) |
| Features | Solder Retention |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.118\" (3.00mm) |
| Positions | 18 |
| Row spacing - mating | 0.118\" (3.00mm) |
| Contact finish - post | Tin-Lead |
| Contact finish - mating | Tin-Lead |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 100.0µin (2.54µm) |
Product details
Frequently asked questions
What compliance documentation does TE provide for the 1-794627-8?
The insulation material is polyamide (PA) nylon rated UL94 V-0. The contact finish is tin-lead.
