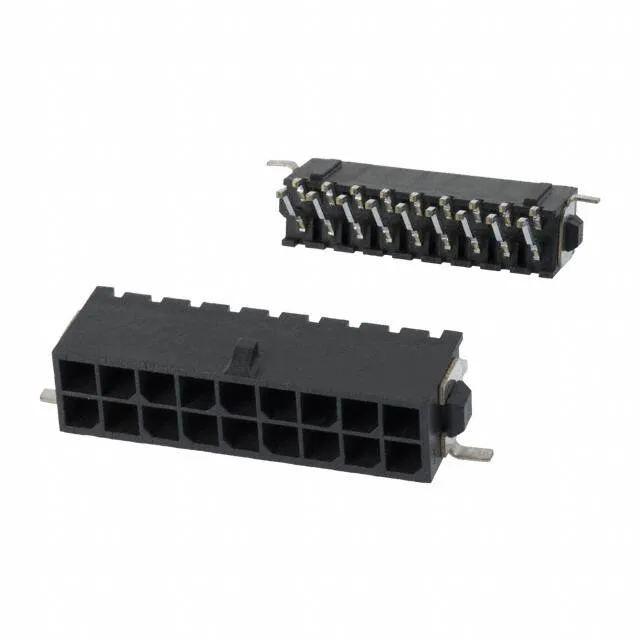

1-794629-8 TE Micro MATE-N-LOK Header, 18 Pos, 3.00 mm

MPN1-794629-8
Obsolete

TE Connectivity Micro MATE-N-LOK header, 1-794629-8, 18 positions, 2-row, 3.00 mm pitch, surface mount right angle, gold mating contacts, shrouded with locking ramp, UL94 V-0.

$1.3000Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 1-794629-8 datasheet (PDF)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026

Specifications

1-794629-8 key specifications
ParameterValue
SeriesMicro MATE-N-LOK
TypeMale Pin
MountingSurface Mount, Right Angle
Connector typeHeader
Fastening typeLocking Ramp
Voltage rating250V
Current ratingVaries by Wire Gauge
Operating temperature-40°C~105°C
Contact materialBrass
Insulation colorBlack
Insulation height0.290\" (7.37mm)
Insulation materialPolyamide (PA), Nylon

All specifications

1-794629-8 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageTape & Reel (TR); Cut Tape (CT)
FeaturesSolder Retention
ShroudingShrouded - 4 Wall
TerminationSolder
ApplicationsGeneral Purpose
Contact shapeSquare
Rows2
Pitch0.118\" (3.00mm)
Positions18
Row spacing - mating0.118\" (3.00mm)
Contact finish - postTin-Lead
Contact finish - matingGold
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

The 1-794629-8: This is a 18-position, 2-row header from TE's Micro MATE-N-LOK series, designed for board-to-wire connections.

Obsolete — Sourcing and Replacement Planning

For existing BOM lines, the functional replacement requires a board spin — the pitch, circuit count, and mounting orientation must be revalidated against the new part. No stock-holding claim — sourced per request.

Surface mount, right-angle termination with solder retention features. The 7.37 mm insulation height clears typical board-edge components.
