TE Connectivity AMP Connectors 1-794632-6 — Pin Headers, Sockets & Housings

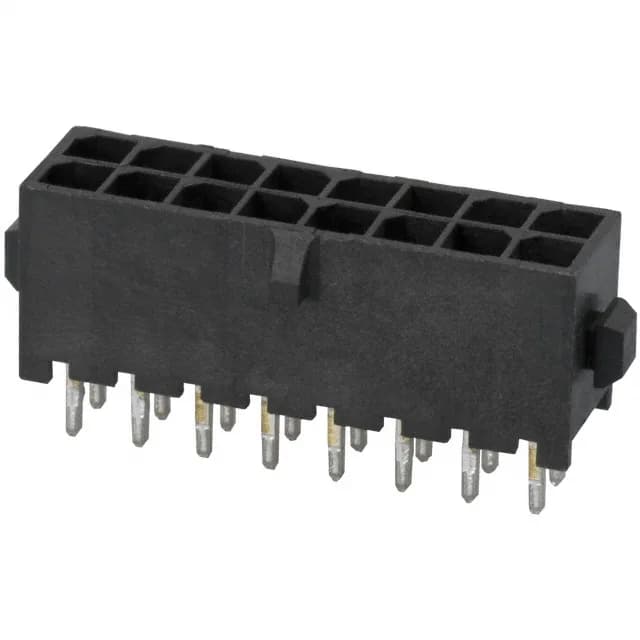

1-794632-6 TE Connectivity Micro MATE-N-LOK Header, 16 Pos

MPN1-794632-6
Active

TE Connectivity AMP Connectors Micro MATE-N-LOK header, 1-794632-6, board-to-cable/wire style, 16 circuits, 2 rows, 3.00 mm pitch, shrouded 4-wall, gold-plated male pins, through-hole press-fit/solder termination, locking ramp, UL94 V-0, active.

$1.1300Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 1-794632-6 datasheet (PDF)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

1-794632-6 key specifications
ParameterValue
SeriesMicro MATE-N-LOK
TypeMale Pin
MountingThrough Hole
Connector typeHeader
Fastening typeLocking Ramp
Voltage rating250V
Current ratingVaries by Wire Gauge
Operating temperature-40°C~105°C
Contact materialBrass
Insulation colorBlack
Insulation height0.364\" (9.25mm)
Insulation materialPolyamide (PA), Nylon

All specifications

1-794632-6 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageTray
ShroudingShrouded - 4 Wall
TerminationPress-Fit, Solder
ApplicationsGeneral Purpose
Contact shapeSquare
Rows2
Pitch0.118\" (3.00mm)
Positions16
Row spacing - mating0.118\" (3.00mm)
Contact finish - postTin-Lead
Contact length - post0.125\" (3.18mm)
Contact finish - matingGold
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

The 1-794632-6: This is a 16-position, dual-row header on a 3.00 mm pitch — the footprint is a 2×8 grid with 0.118" row spacing. Mates with the Micro MATE-N-LOK receptacle housing (example: 1-794634-x series) using the matching crimp terminals.

Contact Plating and Cycle Life

The mating interface carries 30 µinch gold over nickel — rated for 500 mating cycles minimum. The post finish is 100 µinch tin-lead, compatible with standard through-hole solder processes.

Sourced through independent distribution; no stock-holding claim.

Frequently asked questions

Where can I buy 1-794632-6 and how do I get a price?

1-794632-6 is available through independent distribution. No stock-holding claim; availability is verified per order.

What is the mating connector for 1-794632-6?

Mates with a Micro MATE-N-LOK receptacle housing (e.g., 1-794634-x series) using the corresponding crimp terminals.
