TE Connectivity AMP Connectors 1-794635-6 — Pin Headers, Sockets & Housings

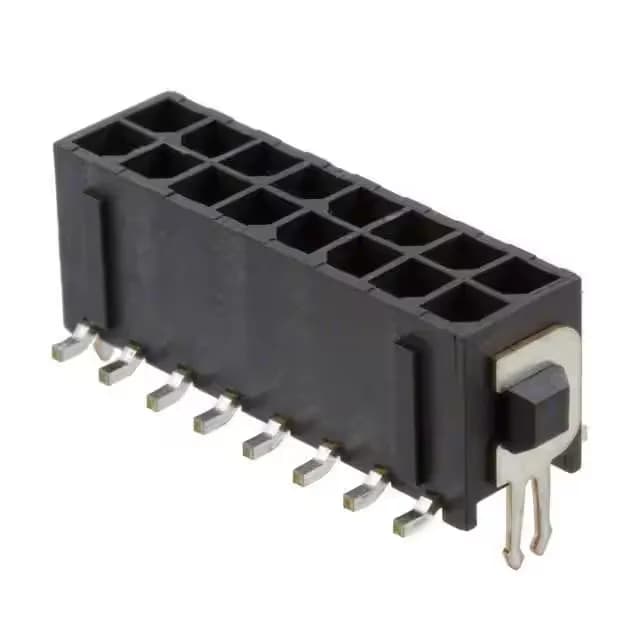

TE 1-794635-6 Micro MATE-N-LOK Header, 16 Pos, 3.00mm

MPN1-794635-6
Obsolete

TE Connectivity AMP Connectors Micro MATE-N-LOK header, order code 1-794635-6, 16 positions, dual row, 3.00 mm pitch, 250 V, gold-plated mating contacts, surface-mount, solder termination, shrouded with locking ramp.

$1.1300Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 1-794635-6 datasheet (PDF)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026

Specifications

1-794635-6 key specifications
ParameterValue
SeriesMicro MATE-N-LOK
TypeMale Pin
MountingSurface Mount
Connector typeHeader
Fastening typeLocking Ramp
Voltage rating250V
Current ratingVaries by Wire Gauge
Operating temperature-40°C~105°C
Contact materialBrass
Insulation colorBlack
Insulation height0.364\" (9.25mm)
Insulation materialPolyamide (PA), Nylon

All specifications

1-794635-6 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageBulk
FeaturesBoard Lock, Pick and Place
ShroudingShrouded - 4 Wall
TerminationSolder
ApplicationsGeneral Purpose, Industrial, Lighting
Contact shapeSquare
Rows2
Pitch0.118\" (3.00mm)
Positions16
Row spacing - mating0.118\" (3.00mm)
Contact finish - postTin-Lead
Contact finish - matingGold
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

Board-to-wire header, 16 circuits

The 1-794635-6 is the 16-circuit member of TE's Micro MATE-N-LOK header line, a board-to-cable/wire interface with a shrouded 4-wall housing and locking ramp. Gold-plated mating contacts rated 250 V, 0.118" (3.00 mm) pitch, dual-row, surface-mount solder termination with board locks and a pick-and-place feature.

Production status — obsolete

The 1-794635-6 is listed as Obsolete by TE Connectivity AMP Connectors. Stock is confirmed at RFQ from independent surplus channels.

Frequently asked questions

How can I order 1-794635-6 or check stock?

The part is obsolete. Availability is confirmed per RFQ — quantities are lot-specific and sourced through independent surplus channels.
