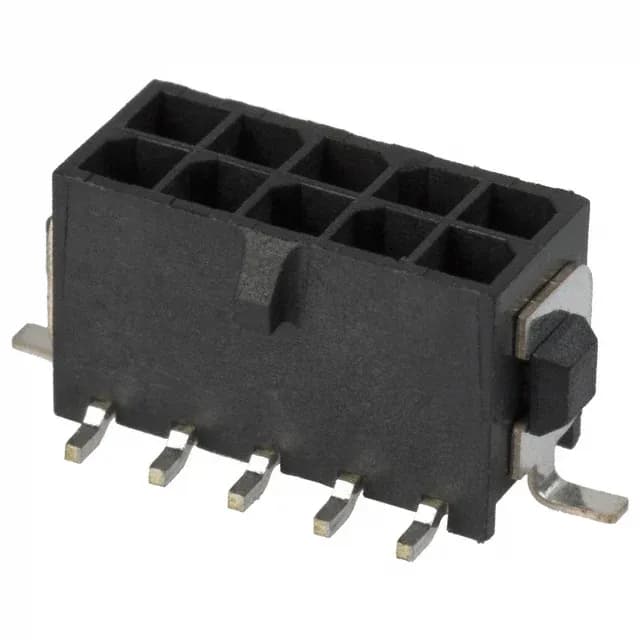

TE Connectivity AMP Connectors Micro MATE-N-LOK header, 1-794638-0, 10 circuits, 2-row, 3.00mm pitch, SMT, shrouded 4-wall, gold mating contacts, locking ramp, UL94 V-0, active.
| Parameter | Value |
|---|---|
| Series | Micro MATE-N-LOK |
| Type | Male Pin |
| Mounting | Surface Mount |
| Connector type | Header |
| Fastening type | Locking Ramp |
| Voltage rating | 250V |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -40°C~105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.364\" (9.25mm) |
| Insulation material | Polyamide (PA), Nylon |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tape & Reel (TR) |
| Features | Solder Retention |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.118\" (3.00mm) |
| Positions | 10 |
| Row spacing - mating | 0.118\" (3.00mm) |
| Contact finish - post | Tin-Lead |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The solder tails have a 100 µinch tin-lead finish, compatible with standard SMT reflow profiles.
The 0.364-inch (9.25mm) insulation height leaves room for the locking ramp and wire routing above the board. Voltage rating is 250V. The square pins (male) mate with standard Micro MATE-N-LOK crimp receptacles.
This header mates with a Micro MATE-N-LOK receptacle housing using crimp terminals. The matching receptacle part numbers vary by circuit count and wire gauge; the 10-position receptacle housing is the common mating half.
The contact finish on the solder tails is tin-lead, which may not be RoHS-compliant for all applications. Check the specific compliance documentation from TE Connectivity for the exact status.
