TE Connectivity AMP Connectors 1-794679-8 — Pin Headers, Sockets & Housings

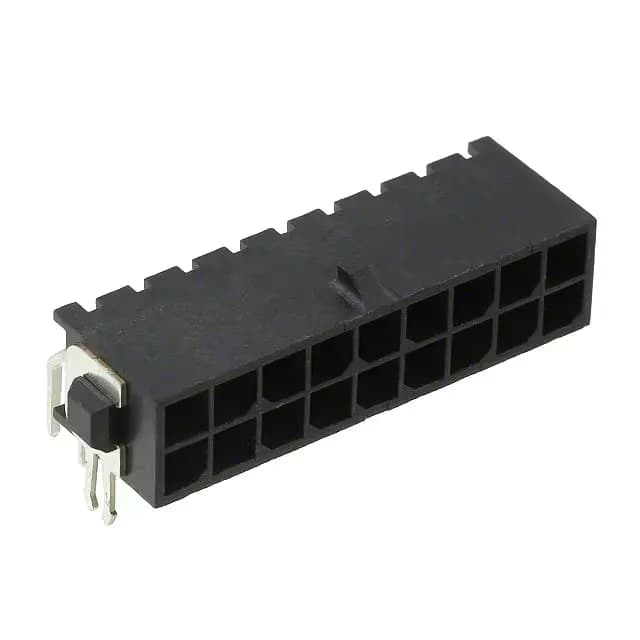

TE 1-794679-8 Micro MATE-N-LOK Header, 18 Pos, 3.00mm

MPN1-794679-8
Obsolete

TE Connectivity AMP Connectors Micro MATE-N-LOK header, order code 1-794679-8, 18 positions, dual row, 0.118" (3.00mm) pitch, 250 V, gold-plated mating contacts, through-hole right-angle, solder termination.

$1.3000Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 1-794679-8 datasheet (PDF)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026

Specifications

1-794679-8 key specifications
ParameterValue
SeriesMicro MATE-N-LOK
TypeMale Pin
MountingThrough Hole, Right Angle
Connector typeHeader
Fastening typeLocking Ramp
Voltage rating250V
Current ratingVaries by Wire Gauge
Operating temperature-40°C~105°C
Contact materialBrass
Insulation colorBlack
Insulation height0.290\" (7.37mm)
Insulation materialPolyamide (PA), Nylon

All specifications

1-794679-8 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageTray
FeaturesBoard Lock
ShroudingShrouded - 4 Wall
TerminationSolder
ApplicationsGeneral Purpose
Contact shapeSquare
Rows2
Pitch0.118\" (3.00mm)
Positions18
Row spacing - mating0.118\" (3.00mm)
Contact finish - postTin-Lead
Contact finish - matingGold
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

Right-angle shrouded header, 18 circuits

The 1-794679-8 is the 18-circuit member of TE's Micro MATE-N-LOK header line, a board-to-cable/wire connector with a shrouded 4-wall housing and locking ramp fastening. It mounts through-hole right-angle, carries gold-plated mating contacts rated 250 V, and includes a board lock for retention during soldering.

Obsolete — no direct successor on record

Stock is limited to existing surplus inventory; quantities are confirmed at RFQ and no further production is planned.

Frequently asked questions

What is the closest pin-compatible alternative to the 1-794679-8?

Any alternative requires a board spin and harness change.

What compliance documentation does TE provide for the 1-794679-8?

RoHS and REACH status should be confirmed per the specific date code lot at time of order.
