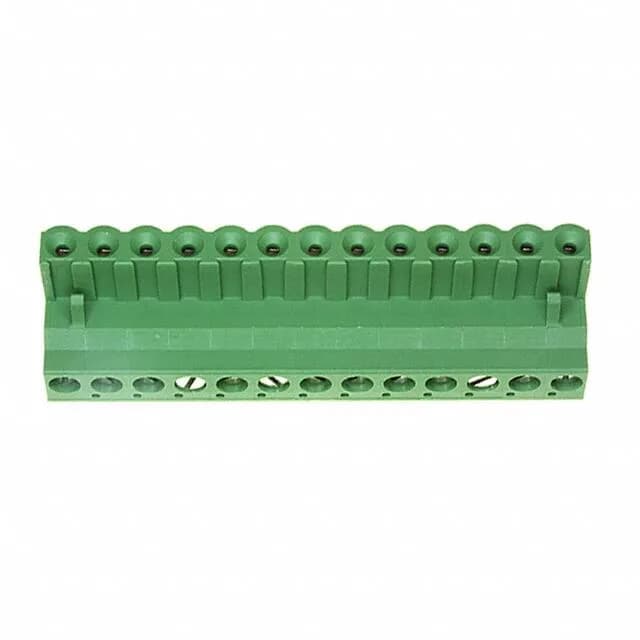

TE Connectivity AMP Connectors Buchanan plug, order code 1-796634-3, 13 positions, single level, 0.200" (5.08mm) pitch, 15 A, 300 V, tin-plated phosphor bronze contacts, screw - rising cage clamp termination, free hanging.
| Parameter | Value |
|---|---|
| Type | Plug, Female Sockets |
| Series | Buchanan |
| Mounting | Free Hanging (In-Line) |
| Voltage - UL | 300 V |
| Current - UL | 15 A |
| Plug wire entry | 180° |
| Wire strip length | 6-7.5mm |
| Wire gauge or range - AWG | 12-30 AWG |
| Wire gauge or range - mm2 | 0.05-3mm² |
| Operating temperature | -40°C~110°C |
| Color | Green |
| Contact material | Phosphor Bronze |
| Parameter | Value |
|---|---|
| Housing material | Polyamide (PA66), Nylon 6/6 |
| Insulation height | 0.610\" (15.49mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.200\" (5.08mm) |
| Package | Bulk |
| Features | Retention Latches (Non-Wire Side) |
| Screw size | M3 |
| Torque - screw | 0.79 Nm (7.0 Lb-In) |
| Number of levels | 1 |
| Termination style | Screw - Rising Cage Clamp |
| Positions | 13 |
| Positions per level | 13 |
| Contact mating finish | Tin |
The 1-796634-3 is the 13-circuit member of TE's Buchanan plug line, a free-hanging (in-line) female socket plug with a single level of positions. It carries tin-plated phosphor bronze contacts rated 15 A at 300 V, terminates via a screw-driven rising cage clamp, and accepts 12-30 AWG (0.05-3 mm²) wire with a 6-7.5 mm strip length.
The plug accepts 12-30 AWG (0.05-3 mm²) wire with a strip length of 6-7.5 mm. Termination is via a screw-driven rising cage clamp with a torque specification of 0.79 Nm (7.0 Lb-In).
