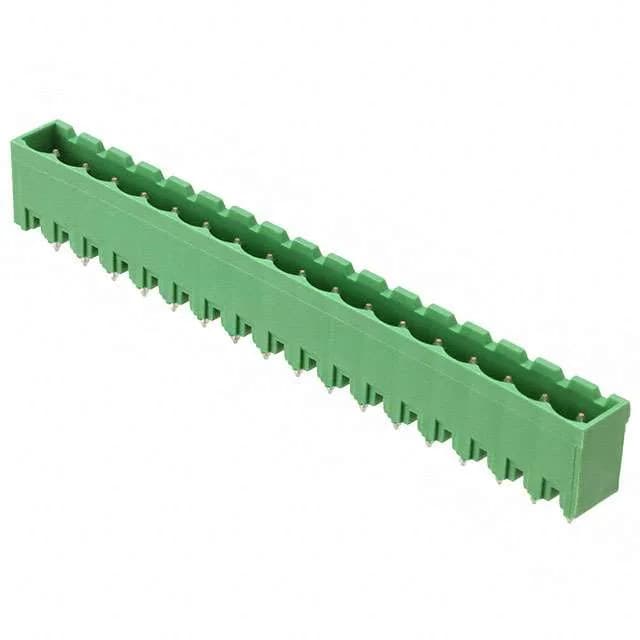

TE Connectivity AMP Connectors Termi-Blok, Buchanan header, order code 1-796636-7, 17 positions, single level, 0.200" (5.08mm) pitch, 15 A, 300 V, tin-plated mating contacts, through-hole vertical, solder termination.
TE 1-796636-7 Termi-Blok Header, 17 Pos 5.08mm
MPN1-796636-7
Active
TE Connectivity AMP Connectors Termi-Blok, Buchanan header, order code 1-796636-7, 17 positions, single level, 0.200" (5.08mm) pitch, 15 A, 300 V, tin-plated mating contacts, through-hole vertical, solder termination.
$6.2836Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Header, Male Pins, Shrouded (4 Side) |
| Series | Termi-Blok, Buchanan |
| Mounting | Through Hole |
| Voltage - UL | 300 V |
| Current - UL | 15 A |
| Operating temperature | -40°C ~ 110°C |
| Color | Green |
| Contact material | Copper Alloy |
| Housing material | Polyamide (PA66), Nylon 6/6 |
| Insulation height | 0.472\" (12.00mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.200\" (5.08mm) |
All specifications
| Parameter | Value |
|---|---|
| Package | Bulk |
| Number of levels | 1 |
| Termination style | Solder |
| Header orientation | Vertical |
| Contact tail length | 0.138\" (3.50mm) |
| Positions | 17 |
| Positions per level | 17 |
| Contact mating finish | Tin |
Product details
Frequently asked questions
What compliance documentation is available for 1-796636-7?
RoHS and REACH compliance documentation is available from TE Connectivity upon request.
