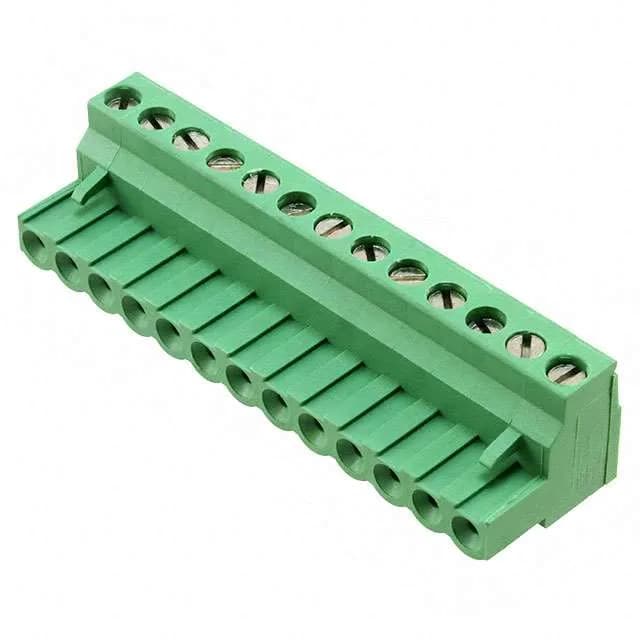

TE Connectivity Buchanan plug, order code 1-796640-3, 13 positions, single level, 5.00 mm pitch, 15 A, 300 V, tin-plated mating finish, free hanging (in-line), screw rising cage clamp termination.
| Parameter | Value |
|---|---|
| Type | Plug, Female Sockets |
| Series | Buchanan |
| Mounting | Free Hanging (In-Line) |
| Voltage - UL | 300 V |
| Current - UL | 15 A |
| Plug wire entry | 180° |
| Wire strip length | 6-7.5mm |
| Wire gauge or range - AWG | 12-30 AWG |
| Wire gauge or range - mm2 | 0.05-3mm² |
| Operating temperature | -40°C ~ 110°C |
| Color | Green |
| Contact material | Phosphor Bronze |
| Parameter | Value |
|---|---|
| Housing material | Polyamide (PA66), Nylon 6/6 |
| Insulation height | 0.610\" (15.49mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.197\" (5.00mm) |
| Package | Bulk |
| Features | Retention Latches (Non-Wire Side), Side Stacking |
| Screw size | M3 |
| Torque - screw | 0.79 Nm (7.0 Lb-In) |
| Number of levels | 1 |
| Termination style | Screw - Rising Cage Clamp |
| Positions | 13 |
| Positions per level | 13 |
| Contact mating finish | Tin |
The 1-796640-3 is a 13-position plug from TE Connectivity's Buchanan series, terminated via a screw rising cage clamp for field wiring.
Wire strip length is 6-7.5 mm; the plug accepts solid or stranded wire from 12 AWG down to 30 AWG (0.05-3 mm²) and features retention latches on the non-wire side plus side-stacking for multi-pole assemblies.
The plug accepts 12-30 AWG (0.05-3 mm²) solid or stranded wire with a strip length of 6-7.5 mm.
