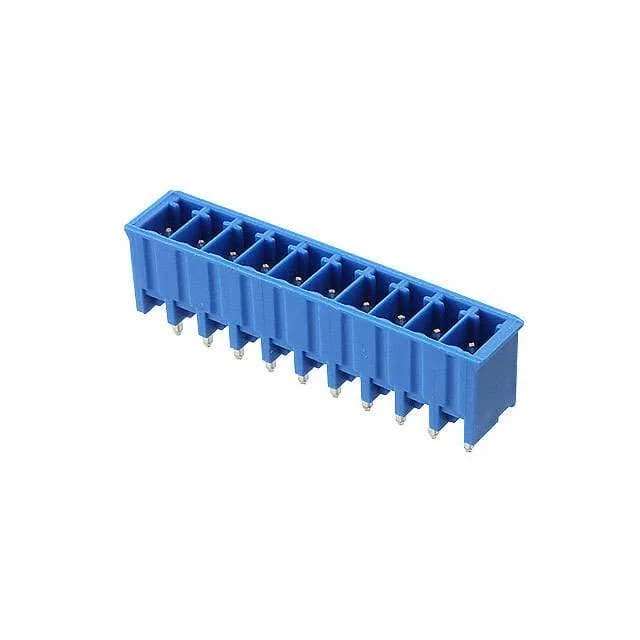

TE Connectivity AMP Connectors Termi-Blok, Buchanan series, Header, Male Pins, Shrouded (4 Side), 10 positions, 0.138" (3.50mm) pitch, Through Hole, Solder, Tin contact finish, 11 A, 300 V, Blue housing, UL94 V-0, Bulk.
| Parameter | Value |
|---|---|
| Type | Header, Male Pins, Shrouded (4 Side) |
| Series | Termi-Blok, Buchanan |
| Mounting | Through Hole |
| Voltage - UL | 300 V |
| Current - UL | 11 A |
| Operating temperature | -40°C ~ 110°C |
| Color | Blue |
| Contact material | Brass |
| Housing material | Polyamide (PA66), Nylon 6/6 |
| Insulation height | 0.362\" (9.20mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.138\" (3.50mm) |
| Parameter | Value |
|---|---|
| Package | Bulk |
| Number of levels | 1 |
| Termination style | Solder |
| Header orientation | Vertical |
| Positions | 10 |
| Positions per level | 10 |
| Contact mating finish | Tin |
The 1-796694-0 is a 10-position, single-level shrouded header from the TE Termi-Blok Buchanan series.
The UL94 V-0 polyamide housing ensures the connector does not propagate flame in the event of a fault.
The 1-796694-0 is active and available through independent distribution. Submit an RFQ for current pricing and lead time — availability is confirmed per your BOM quantity at quote time.
It is a 10-position, single-level header with vertical orientation (straight through-hole pins). The shrouded housing has 4-side polarization to guide mating with the corresponding receptacle.
