Housing and wire entry

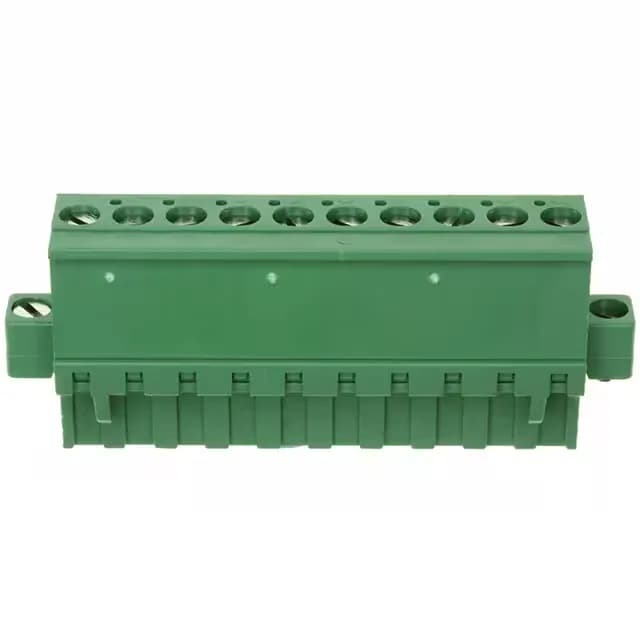

The 1-796861-0 is a 10-position Buchanan plug, free-hanging with a 270° wire entry — the wire comes in from the side, not straight down, which keeps the bundle flat against the panel or rail.
1-796861-0 TE Buchanan Plug 10 Pos 5.08mm 15A
MPN1-796861-0
Active
TE Connectivity AMP Connectors Buchanan plug, order code 1-796861-0, 10 positions, single level, 5.08 mm pitch, 15 A, 300 V, tin-plated phosphor bronze contacts, free-hanging, screw - rising cage clamp termination.
$13.2400Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Plug, Female Sockets |
| Series | Buchanan |
| Mounting | Free Hanging (In-Line) |
| Voltage - UL | 300 V |
| Current - UL | 15 A |
| Plug wire entry | 270° |
| Wire strip length | 6-7.5mm |
| Wire gauge or range - AWG | 12-30 AWG |
| Operating temperature | -40°C~110°C |
| Color | Green |
| Contact material | Phosphor Bronze |
| Housing material | Polyamide (PA66), Nylon 6/6 |
All specifications
| Parameter | Value |
|---|---|
| Insulation height | 0.984\" (25.00mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.200\" (5.08mm) |
| Package | Bulk |
| Features | Mating Flange, Retention Latches (Non-Wire Side) |
| Screw size | M3 |
| Torque - screw | 0.79 Nm (7.0 Lb-In) |
| Number of levels | 1 |
| Termination style | Screw - Rising Cage Clamp |
| Positions | 10 |
| Positions per level | 10 |
| Contact mating finish | Tin |
Product details
Frequently asked questions
What is the termination style and wire range for 1-796861-0?
Termination is screw - rising cage clamp, accepting 12-30 AWG wire with a strip length of 6-7.5 mm. Torque spec is 0.79 Nm (7.0 Lb-In).
