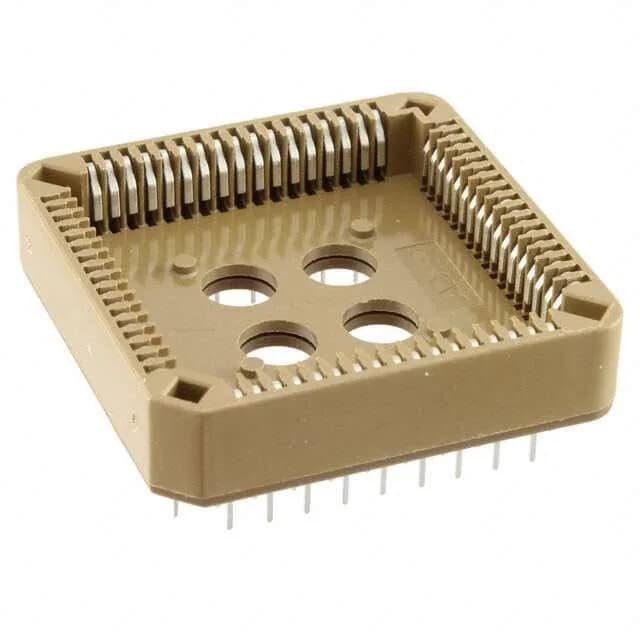

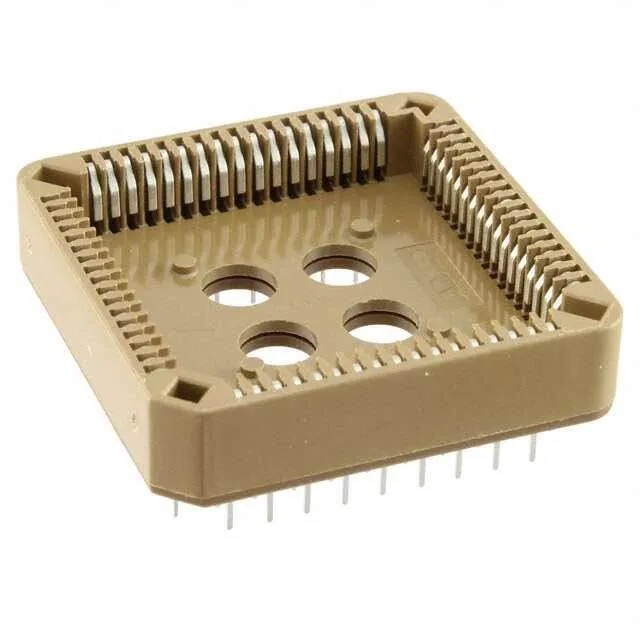

TE Connectivity AMP Connectors 1-822473-6 PLCC socket, 68 positions (4 x 17 grid), 0.050" (1.27 mm) mating pitch, 0.100" (2.54 mm) post pitch, through-hole solder termination, tin-plated phosphor bronze contacts, closed-frame thermoplastic housing rated UL94 V-0.
| Parameter | Value |
|---|---|
| Type | PLCC |
| Mounting | Through Hole |
| Housing material | Thermoplastic |
| Contact material - post | Phosphor Bronze |
| Contact material - mating | Phosphor Bronze |
| Material flammability rating | UL94 V-0 |
| Package | Box |
| Features | Closed Frame |
| Termination | Solder |
| Pitch - post | 0.100\" (2.54mm) |
| Pitch | 0.050\" (1.27mm) |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
| Number of positions or pins | 68 (4 x 17) |
The 1-822473-6: The closed-frame thermoplastic housing (UL94 V-0 rated) provides mechanical support around the package body and prevents flex during insertion or extraction cycles.
No pin-compatible alternative in the same PLCC socket family has been identified from TE Connectivity.
The socket has 68 positions arranged in a 4 x 17 grid.
