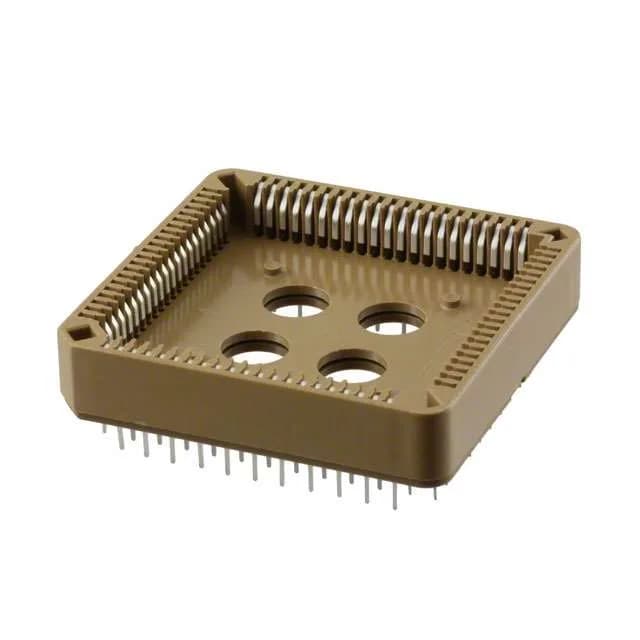

TE Connectivity AMP Connectors PLCC socket, order code 1-822473-7, 84 positions, 4 x 21 grid, 0.050" (1.27mm) mating pitch, 0.100" (2.54mm) post pitch, tin-plated mating and post contacts, through-hole solder termination, closed frame.
| Parameter | Value |
|---|---|
| Type | PLCC |
| Mounting | Through Hole |
| Housing material | Thermoplastic |
| Contact material - post | Phosphor Bronze |
| Contact material - mating | Phosphor Bronze |
| Material flammability rating | UL94 V-0 |
| Package | Box |
| Features | Closed Frame |
| Termination | Solder |
| Pitch - post | 0.100\" (2.54mm) |
| Pitch | 0.050\" (1.27mm) |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 100.0µin (2.54µm) |
| Number of positions or pins | 84 (4 x 21) |
The 1-822473-7 is a 84-position PLCC socket from TE Connectivity AMP Connectors, arranged in a 4 x 21 grid with a closed frame housing. Mating pitch is 0.050" (1.27mm) with a post pitch of 0.100" (2.54mm).
No official successor or pin-compatible alternative is recorded for this PLCC socket.
It is a PLCC socket with 84 positions arranged in a 4 x 21 grid. The housing is a closed-frame design.
Termination is through-hole solder.
