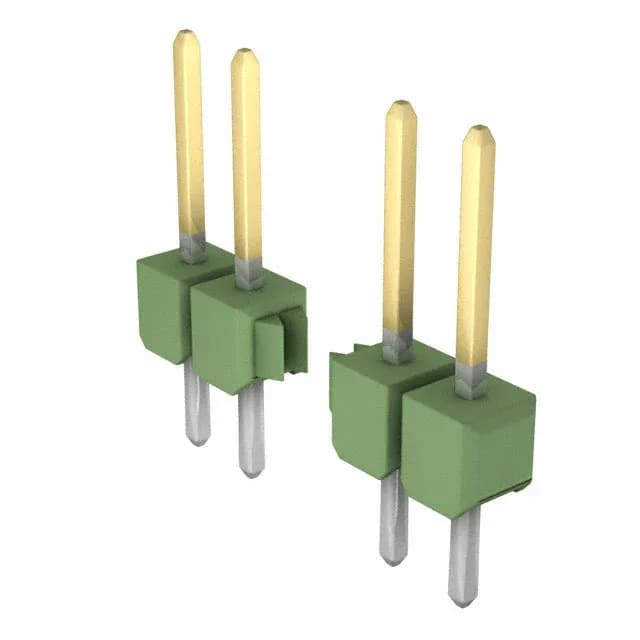

1-825433-8 TE Connectivity AMPMODU Mod II 18-Pin Header

MPN1-825433-8
Active

TE Connectivity AMPMODU Mod II, Header, Breakaway, 18 Positions, 0.100" (2.54mm) Pitch, Through Hole, Solder, Male Pin, Gold Flash Mating, Tin Post, UL94 V-0, -65°C~105°C, 5A, Active, RoHS3

$2.5800Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesAMPMODU Mod II
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

1-825433-8 key specifications
ParameterValue
SeriesAMPMODU Mod II
TypeMale Pin
MountingThrough Hole
Connector typeHeader, Breakaway
Fastening typePush-Pull
Current rating5A
Operating temperature-65°C~105°C
Contact materialBrass
Insulation colorGreen
Insulation height0.110\" (2.79mm)
Insulation materialPolybutylene Terephthalate (PBT)
Material flammability ratingUL94 V-0

All specifications

1-825433-8 additional specifications
ParameterValue
StyleBoard to Board or Cable
PackageBulk
ShroudingUnshrouded
TerminationSolder
Contact shapeSquare
Rows1
Pitch0.100\" (2.54mm)
Positions18
Contact finish - postTin
Contact length - post0.126\" (3.20mm)
Overall contact length0.500\" (12.70mm)
Contact finish - matingGold
Contact length - mating0.264\" (6.70mm)
Contact finish thickness - post98.4µin (2.50µm)
Contact finish thickness - matingFlash

Product details

The UL94 V-0 PBT housing keeps it safe inside an enclosure.

What the Gold Flash Means for Field Life

In a connector that's mated once and left alone, it's fine: the gold prevents oxidation during storage and the first mate wipes clean. For high-cycle applications, step up to a header with 15 or 30 microinch gold. The post finish is tin (98.4 microinches), which solders well into a through-hole board. The 0.126" (3.20mm) post length gives enough stand-off for a standard 1.6mm PCB.

The 1-825433-8 gives you 18 positions in a straight, unshrouded format — if you need the extra circuits and don't require a shroud, this is the one. The 1376366-8 uses a 2.20mm pitch and tin mating finish, so the footprint and contact durability differ.

Frequently asked questions

Is 1-825433-8 RoHS compliant?

Yes, the 1-825433-8 is ROHS3 Compliant.

Does 1-825433-8 include a locking mechanism?

No — the fastening type is Push-Pull, meaning the header relies on the mating connector's own retention (friction or its latch) to stay mated. There is no integral lock on this unshrouded header.
