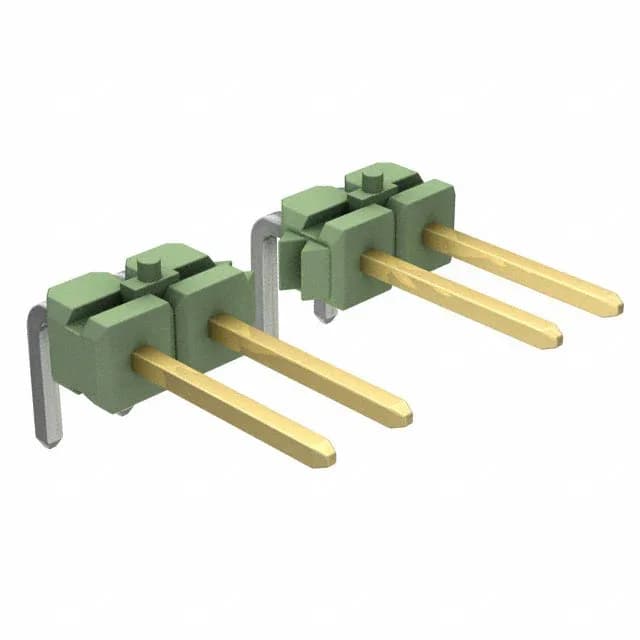

TE Connectivity AMPMODU Mod II header, breakaway, order code 1-825437-6, 16 positions, single row, 0.100" (2.54mm) pitch, 5 A, gold-plated mating contacts, through-hole right-angle, solder termination.
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Current rating | 5A |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Green |
| Insulation height | 0.100\" (2.54mm) |
| Insulation material | Polybutylene Terephthalate (PBT) |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Bulk |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 16 |
| Contact finish - post | Tin |
| Contact length - post | 0.126\" (3.20mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.264\" (6.70mm) |
| Contact finish thickness - post | 98.4µin (2.50µm) |
| Contact finish thickness - mating | 3.90µin (0.099µm) |
The 1-825437-6 is the 16-circuit member of TE Connectivity's AMPMODU Mod II breakaway header line, unshrouded, single-row, with a push-pull mating interface. Rated 5 A per contact, the gold-plated mating surface supports repeated connect-disconnect cycles in board-to-board or cable applications.
Mating contacts are gold over 3.90µin (0.099µm) thickness; the post finish is tin at 98.4µin (2.50µm).
The 1-825437-6 is an unshrouded breakaway header. Confirm the mating half part number against the series base code 825437.
TE Connectivity AMP Connectors provides RoHS, REACH, and UL documentation for the AMPMODU Mod II series. The insulator carries a UL94 V-0 rating. Request the specific compliance certificate from the supplier at RFQ.
