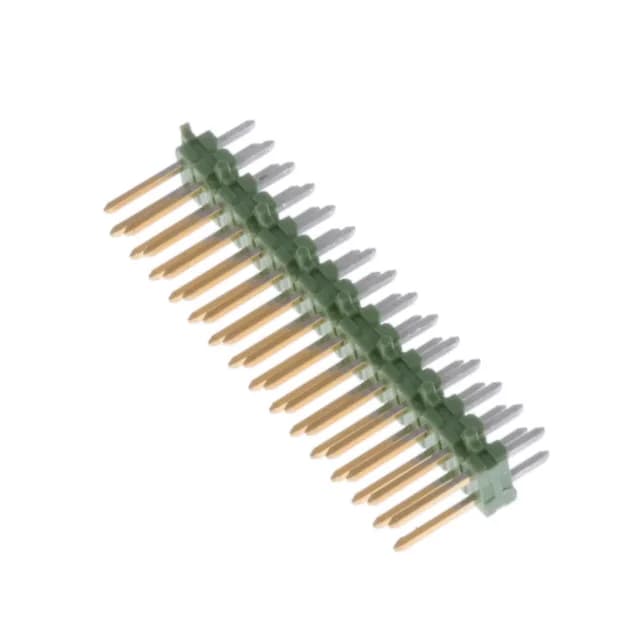

TE Connectivity AMP Connectors AMPMODU Mod II, 1-825440-5, unshrouded header, 30 positions, 2 rows, 0.100" (2.54mm) pitch, male pin, square contact, through-hole solder termination, gold mating finish, UL94 V-0 PBT housing, -65°C to 105°C operating range.
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Green |
| Insulation height | 0.110\" (2.79mm) |
| Insulation material | Polybutylene Terephthalate (PBT) |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Parameter | Value |
|---|---|
| Package | Bulk |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 30 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.126\" (3.20mm) |
| Overall contact length | 0.500\" (12.70mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.264\" (6.70mm) |
| Contact finish thickness - post | 98.4µin (2.50µm) |
| Contact finish thickness - mating | 3.90µin (0.099µm) |
The 1-825440-5: The square male pins are gold-plated on the mating surface (3.90µin thickness) for reliable low-resistance contact over repeated mating cycles, while the solder tails receive a tin finish (98.4µin) for good solderability.
Fastening is push-pull, meaning the header relies on friction from the mating receptacle for retention — no locking latch. This is typical for unshrouded headers used in low-vibration, serviceable connections.
Confirm the mating half's keying and polarization before committing.
Yes, it is ROHS3 compliant.
