BOM-fit check: pitch, circuit count, and plating
The 1-825440-6: The gold mating finish (3.90µin) is a step above the tin finish on peer 1379030-3, which limits that part to fewer mating cycles and a lower temperature ceiling.

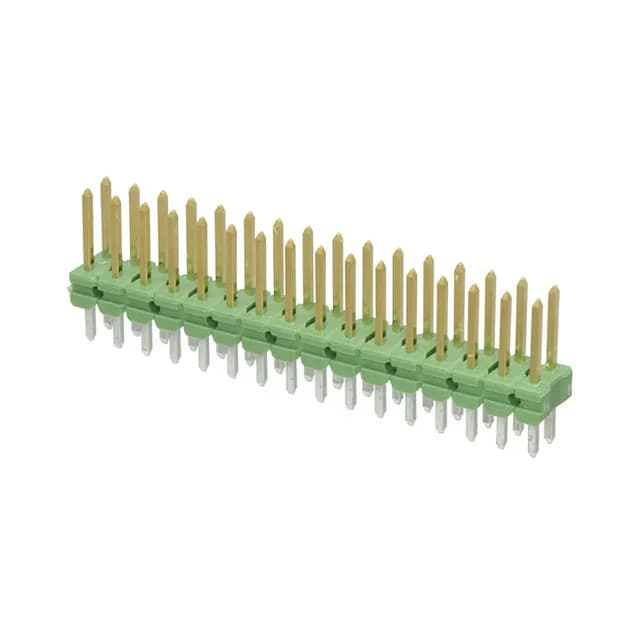

1-825440-6 TE AMPMODU Mod II 32 Pos 2.54mm
MPN1-825440-6
Active
TE Connectivity AMP Connectors AMPMODU Mod II unshrouded header, 32 positions, 0.100" (2.54mm) pitch, dual-row, through-hole, male pin, gold mating finish, UL94 V-0, Bulk
$3.6700Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesAMPMODU Mod II
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Green |
| Insulation height | 0.110\" (2.79mm) |
| Insulation material | Polybutylene Terephthalate (PBT) |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
All specifications
| Parameter | Value |
|---|---|
| Package | Bulk |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 32 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.126\" (3.20mm) |
| Overall contact length | 0.500\" (12.70mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.264\" (6.70mm) |
| Contact finish thickness - post | 98.4µin (2.50µm) |
| Contact finish thickness - mating | 3.90µin (0.099µm) |
Product details
Frequently asked questions
What is the pitch and position count of 1-825440-6?
0.100" (2.54mm) pitch, 32 positions loaded in two rows with 0.100" (2.54mm) row spacing.
Where can I buy 1-825440-6 and check stock?
Sourced to order against the BOM quantity. Availability and pricing confirmed at quote time.
