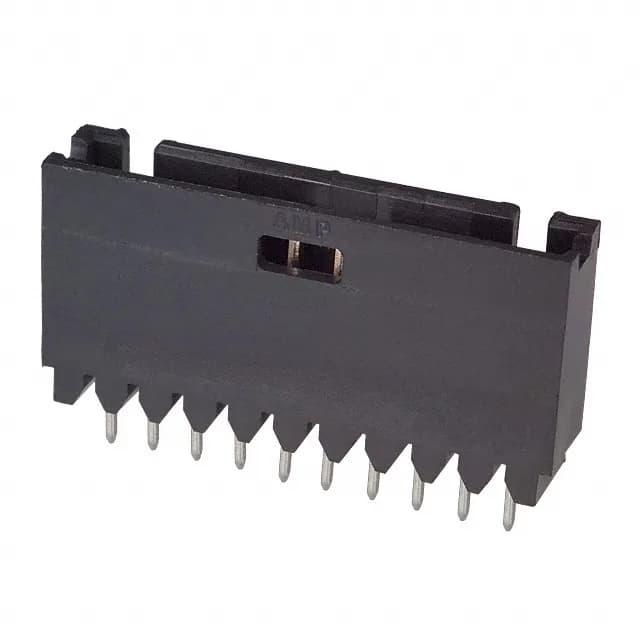

TE Connectivity AMPMODU Mod II header, order code 1-826467-0, 10 positions, single row, 0.100" (2.54mm) pitch, shrouded - 2 wall, gold mating contacts, through hole, solder termination.
1-826467-0 TE AMPMODU Mod II Header, 10 Pos, 2.54mm
MPN1-826467-0
Active
TE Connectivity AMPMODU Mod II header, order code 1-826467-0, 10 positions, single row, 0.100" (2.54mm) pitch, shrouded - 2 wall, gold mating contacts, through hole, solder termination.
$0.9475Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Holder |
| Operating temperature | -55°C~105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.394\" (10.00mm) |
| Insulation material | Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
All specifications
| Parameter | Value |
|---|---|
| Package | Bulk |
| Shrouding | Shrouded - 2 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 10 |
| Contact finish - post | Tin |
| Contact length - post | 0.126\" (3.20mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 118.1µin (3.00µm) |
| Contact finish thickness - mating | 3.90µin (0.099µm) |
Product details
Frequently asked questions
What is the pin-compatible alternative to 1-826467-0 in the AMPMODU Mod II series?
No pin-compatible alternative is listed — the 1-826467-0 is a specific 10-position, single-row, shrouded variant. Other AMPMODU Mod II headers share the pitch and footprint but differ in position count or shroud style; match the BOM position count and shroud requirement to select the correct part.
