The 1-826469-0: Gold-plated mating contacts (3.90µin) resist corrosion and support repeated mating cycles, while the tin-plated posts (118.1µin) solder reliably into through-hole boards.

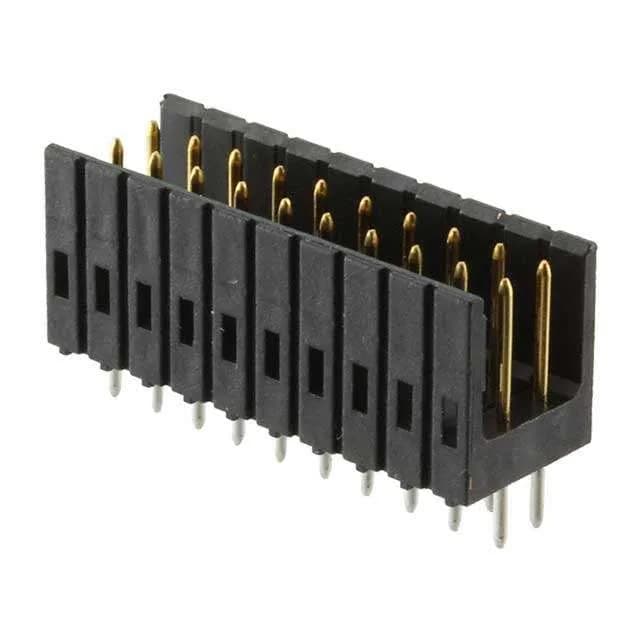

1-826469-0 TE Connectivity AMPMODU Mod II 20-Pin Header
MPN1-826469-0
Active
TE Connectivity AMP Connectors, AMPMODU Mod II, Header, 20 Positions, 2 Rows, 0.100" (2.54mm) Pitch, Through Hole, Solder, Shrouded - 2 Wall, Latch Holder, Gold Mating, Black, UL94 V-0
$5.0500Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesAMPMODU Mod II
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Holder |
| Operating temperature | -55°C ~ 105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.394\" (10.00mm) |
| Insulation material | Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
All specifications
| Parameter | Value |
|---|---|
| Package | Bulk |
| Shrouding | Shrouded - 2 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 20 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.126\" (3.20mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 118.1µin (3.00µm) |
| Contact finish thickness - mating | 3.90µin (0.099µm) |
Product details
Frequently asked questions
Where can I buy 1-826469-0?
Submit a request with your BOM quantity for current pricing and lead time. No stock-holding claim; availability confirmed at quote.
What is the pitch of 1-826469-0?
The mating pitch is 0.100 inches (2.54mm) with the same row spacing, matching the standard AMPMODU Mod II footprint.
Is 1-826469-0 shrouded?
Yes, it features a shrouded 2-wall design with a latch holder for secure mating and vibration resistance.
How many positions does 1-826469-0 have?
It has 20 positions arranged in two rows, all loaded.
