Board-to-Board or Cable – What This Header Does

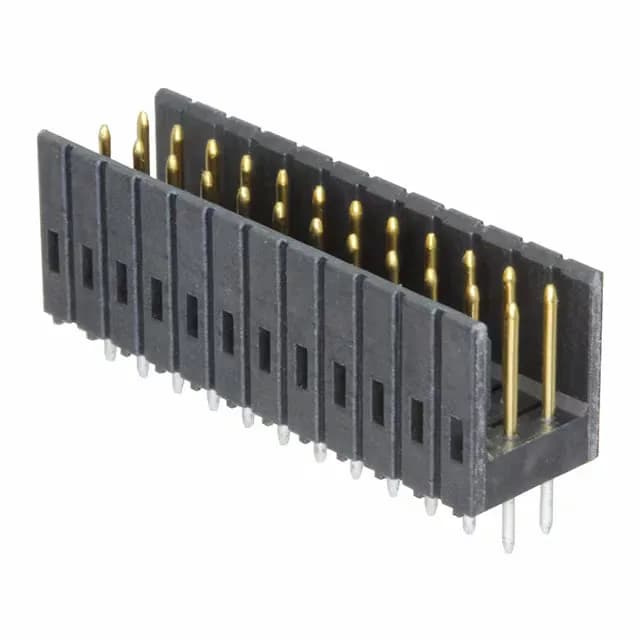

The 1-826469-2: Shrouded with two walls and a latch holder, it provides mechanical keying and vibration-resistant retention. The latch audibly clicks when mated, preventing accidental disconnection in industrial or field-service environments.
Pitch, Positions, and Mating Half Fit
With 24 positions in two rows spaced at 0.100" (2.54mm) row-to-row, the header matches standard AMPMODU Mod II receptacles and IDC connectors. The 0.126" (3.20mm) solder post length suits through-hole PCB mounting with typical board thicknesses. All 24 positions are loaded — no optional or dummy pins. The square male pin contact geometry mates with standard AMPMODU female contacts.
ROHS3 compliant.
