TE Connectivity AMPMODU Mod II, Header, 26 Positions, 0.100" (2.54mm) Pitch, Through Hole, Shrouded - 2 Wall, Gold Mating Finish, Latch Holder, Active
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Holder |
| Operating temperature | -55°C ~ 105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.394\" (10.00mm) |
| Insulation material | Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Parameter | Value |
|---|---|
| Package | Bulk |
| Shrouding | Shrouded - 2 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 26 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.126\" (3.20mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 118.1µin (3.00µm) |
| Contact finish thickness - mating | 3.90µin (0.099µm) |
A latch holder provides positive retention against vibration-induced disconnect.
The mating contacts are finished with 3.90µin (0.099µm) gold over phosphor bronze, which supports repeated mating cycles without corrosion. The post tails are tin-plated at 118.1µin (3.00µm) for reliable solder wetting.

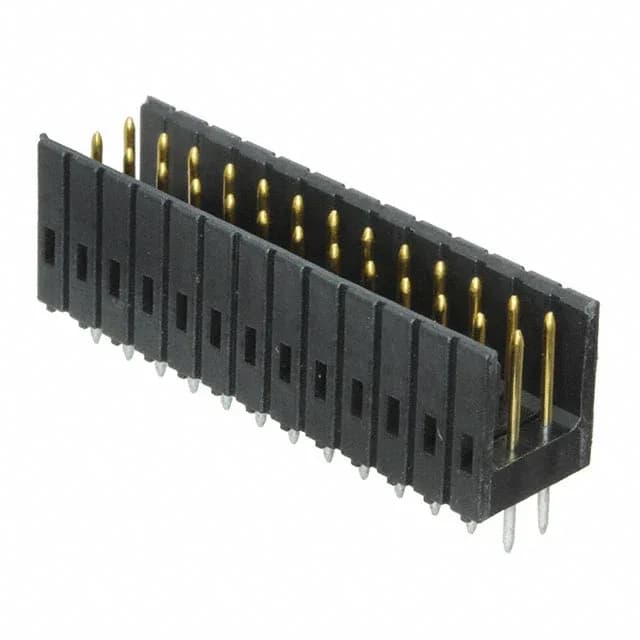

The 1-826469-3 is a shrouded male header. It mates with AMPMODU Mod II female socket housings or IDC receptacles that accept 0.100" (2.54mm) pitch, 26-position, dual-row configurations. Confirm the mating half part number against your assembly drawing.
