TE Connectivity AMP Connectors 1-826470-0 — Pin Headers

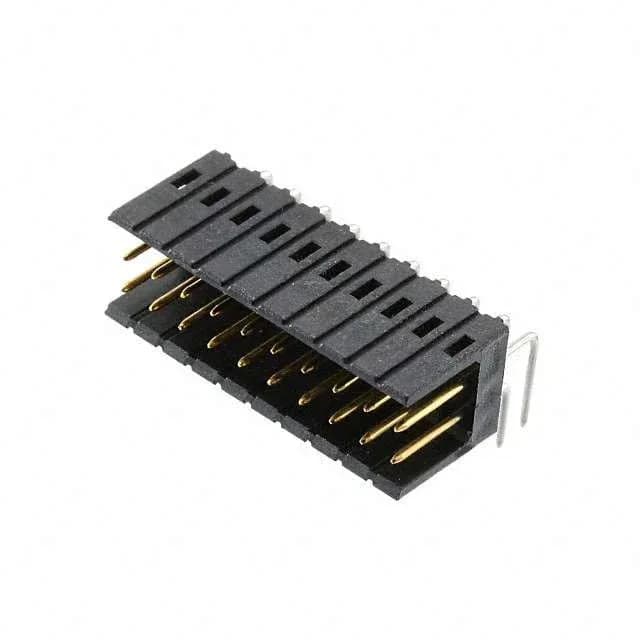

1-826470-0 TE Connectivity AMP Connectors Pin Header 20 Pos

MPN1-826470-0
Active

TE Connectivity AMP Connectors AMPMODU Mod II header, 20 positions, 2.54mm pitch, dual-row, right-angle through-hole, shrouded 2-wall with latch holder, gold mating finish, active production.

$6.1700Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 1-826470-0 datasheet (PDF)
RoHSROHS3 Compliant
SeriesAMPMODU Mod II
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

1-826470-0 key specifications
ParameterValue
SeriesAMPMODU Mod II
TypeMale Pin
MountingThrough Hole, Right Angle
Connector typeHeader
Fastening typeLatch Holder
Operating temperature-55°C~105°C
Contact materialPhosphor Bronze
Insulation colorBlack
Insulation height0.339\" (8.61mm)
Insulation materialPolycyclohexylenedimethylene Terephthalate (PCT), Glass Filled
Material flammability ratingUL94 V-0
StyleBoard to Board or Cable

All specifications

1-826470-0 additional specifications
ParameterValue
PackageBulk
ShroudingShrouded - 2 Wall
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions20
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin
Contact length - post0.126\" (3.20mm)
Contact finish - matingGold
Contact finish thickness - post118.1µin (3.00µm)
Contact finish thickness - mating3.90µin (0.099µm)

Product details

The insulation height of 8.61mm and post length of 3.20mm set the clearance for the mating connector and the board thickness budget.

Active Production and ROHS3 Compliance

The base product number is 826470, which means variations in plating or post length share the same tooling family.

How This Compares to Peer Alternatives

Compared to the 1318699-3, which is a 12-position, 4-row header at 4.20mm pitch with a circular contact shape and a 4-wall shroud, this 1-826470-0 offers more positions (20 vs 12) in a denser 2.54mm pitch.

Frequently asked questions

What is the mating connector for 1-826470-0?

This is a male pin header; it mates with a female socket receptacle from the same AMPMODU Mod II series, typically a 20-position, 2.54mm pitch IDC or crimp socket. Confirm the receptacle part number from the TE Connectivity catalog for your termination method.
