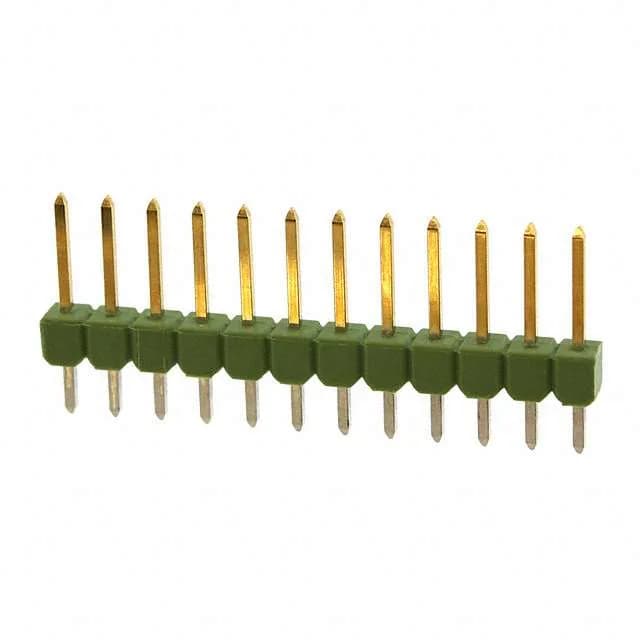

TE Connectivity AMPMODU Mod II, Header Breakaway, 12 Positions, 0.100" (2.54mm) Pitch, Through Hole, Gold Mating Finish, Tin Post, Green PBT Housing, UL94 V-0, Active
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Current rating | 5A |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Green |
| Insulation height | 0.110\" (2.79mm) |
| Insulation material | Polybutylene Terephthalate (PBT) |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Bulk |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 12 |
| Contact finish - post | Tin |
| Contact length - post | 0.126\" (3.20mm) |
| Overall contact length | 0.500\" (12.70mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.264\" (6.70mm) |
| Contact finish thickness - post | 118.1µin (3.00µm) |
| Contact finish thickness - mating | 3.90µin (0.099µm) |
It is rated 5A per contact and operates from -65°C to 105°C.
The push-pull fastening type provides a basic retention — adequate for low-vibration board-to-board or cable connections.
Submit an RFQ with your target quantity. We source this active part against the BOM line; current pricing and lead time are confirmed at quote time.
Yes, it is ROHS3 compliant.
Yes, its listed style is Board to Board or Cable.
The mating pitch is 0.100" (2.54mm).
It is unshrouded — the pins are exposed above the insulator.
