TE Connectivity AMP Connectors 1-826629-6 — Pin Headers

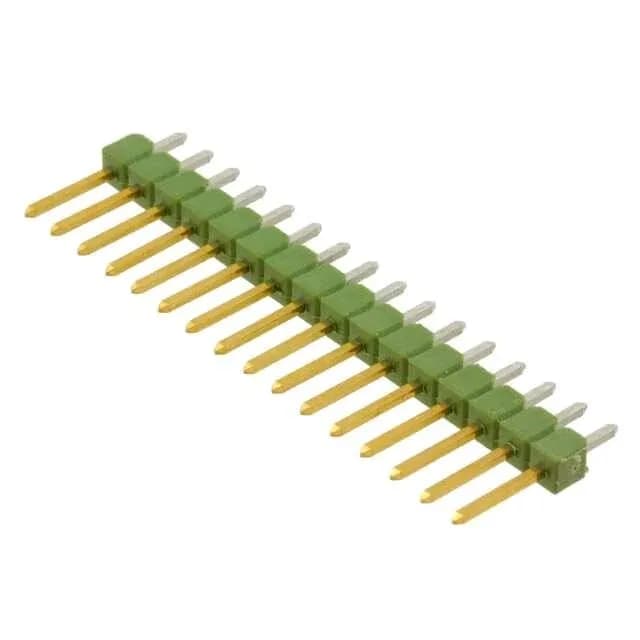

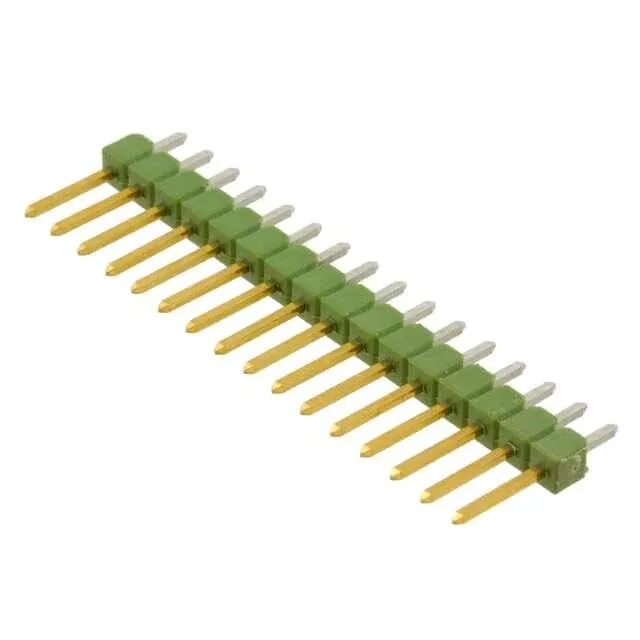

1-826629-6 TE Connectivity AMPMODU Mod II Header, 16 Pos

MPN1-826629-6
Active

TE Connectivity AMP Connectors AMPMODU Mod II, Header, Breakaway, 16 Positions, 0.100" (2.54mm) Pitch, Through Hole, Solder, Gold Mating, Tin Post, UL94 V-0, -65°C~105°C, 5A

$2.0400Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 1-826629-6 datasheet (PDF)
RoHSRoHS Compliant
SeriesAMPMODU Mod II
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

1-826629-6 key specifications
ParameterValue
SeriesAMPMODU Mod II
TypeMale Pin
MountingThrough Hole
Connector typeHeader, Breakaway
Fastening typePush-Pull
Current rating5A
Operating temperature-65°C~105°C
Contact materialBrass
Insulation colorGreen
Insulation height0.110\" (2.79mm)
Insulation materialPolybutylene Terephthalate (PBT)
Material flammability ratingUL94 V-0

All specifications

1-826629-6 additional specifications
ParameterValue
StyleBoard to Board or Cable
PackageBulk
ShroudingUnshrouded
TerminationSolder
Contact shapeSquare
Rows1
Pitch0.100\" (2.54mm)
Positions16
Contact finish - postTin
Contact length - post0.126\" (3.20mm)
Overall contact length0.500\" (12.70mm)
Contact finish - matingGold
Contact length - mating0.264\" (6.70mm)
Contact finish thickness - post118.1µin (3.00µm)
Contact finish thickness - mating3.90µin (0.099µm)

Product details

16-Pin Breakaway Header at 2.54mm Pitch

The 1-826629-6: This is a 16-position, single-row, unshrouded breakaway header from the AMPMODU Mod II series. Rated for board-to-board or cable connections, this header mates with standard AMPMODU receptacles and IDC sockets. The push-pull fastening and unshrouded design allow easy manual mating and visual inspection of the solder joints.

Thermal and Mechanical Ratings

The UL94 V-0 rated PBT housing ensures flame retardancy for equipment inside an enclosure.

Sourcing and Production Status

RoHS compliant per current directive.

Frequently asked questions

What is the mating connector for 1-826629-6?

This unshrouded header mates with standard AMPMODU Mod II receptacles and IDC sockets that accept 0.025" square pins at 2.54mm pitch. Common mating parts include AMPMODU receptacle housings and crimp socket terminals.

What is the closest pin-compatible alternative to 1-826629-6?

No official direct replacement is listed. Other AMPMODU Mod II headers with the same 0.100" pitch, single row, and 16 positions may be functionally equivalent — verify the contact finish and overall length against your application.

Where can I buy 1-826629-6?

Availability and current pricing confirmed at quote time.
