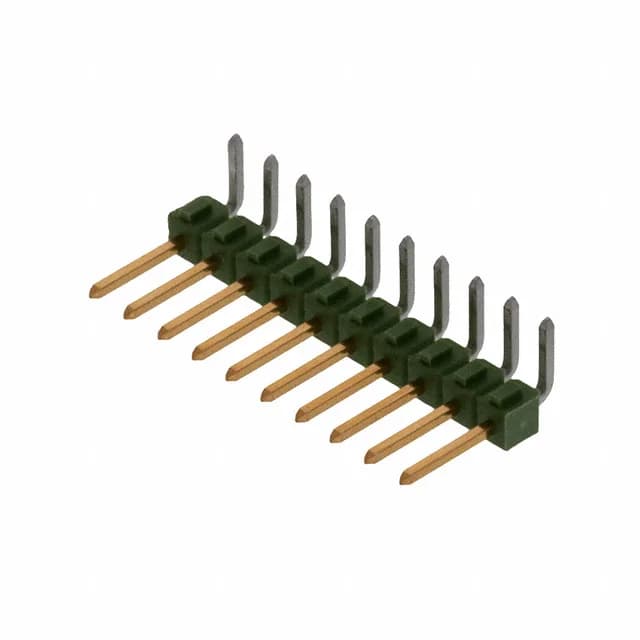

TE Connectivity AMP Connectors AMPMODU Mod II, 1-826631-0, unshrouded right-angle header, 10 positions, 0.100" (2.54 mm) pitch, single row, through-hole solder, gold mating finish, rated 5 A per contact.
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Current rating | 5A |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Green |
| Insulation height | 0.120\" (3.05mm) |
| Insulation material | Polybutylene Terephthalate (PBT) |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Bulk |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 10 |
| Contact finish - post | Tin |
| Contact length - post | 0.126\" (3.20mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.264\" (6.70mm) |
| Contact finish thickness - post | 118.1µin (3.00µm) |
| Contact finish thickness - mating | 3.90µin (0.099µm) |
The brass contacts with gold mating finish keep contact resistance low, but the 5 A rating assumes all pins carry current simultaneously — derate if the ambient exceeds 105°C or if the connector is in a confined space with poor airflow.
Single row, 10 positions, all loaded. Pin 1 is typically marked by a triangle or notch on the housing body (green PBT). The right-angle orientation means pin 1 is at the short side of the L-shaped body when viewed from above.
No direct drop-in equivalent is listed. The peer 1376366-8 has a different pitch (0.087") and tin mating finish — not a pin-for-pin swap. Always confirm the mating half and board footprint before substituting.
