Right-angle breakaway header for board-edge routing
Gold mating surface and 5A current rating
Rated 5A per contact, the current ceiling is typical for signal-level circuits in this pitch class.

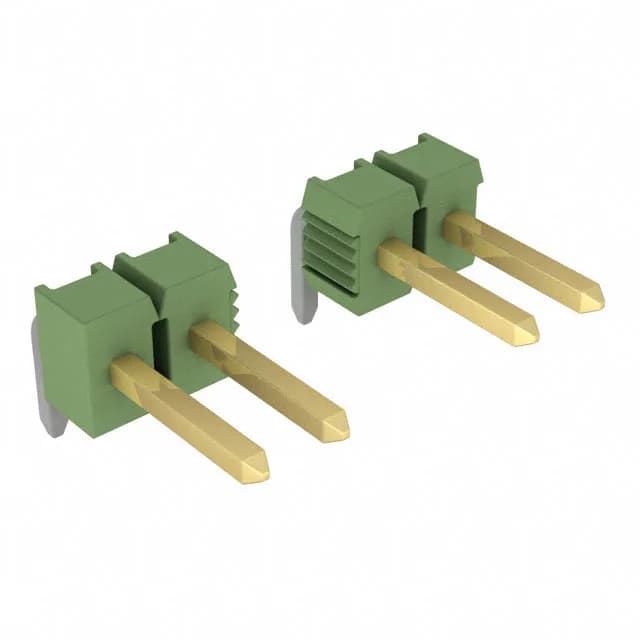

1-826631-6 TE Connectivity AMPMODU Mod II Header, 16 Pos
MPN1-826631-6
Active
TE Connectivity AMPMODU Mod II, Header, Breakaway, 16 Positions, 0.100" (2.54mm) Pitch, Through Hole, Right Angle, Solder Termination, Gold Mating Finish, 5A, UL94 V-0
$2.0200Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesAMPMODU Mod II
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Current rating | 5A |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Green |
| Insulation height | 0.120\" (3.05mm) |
| Insulation material | Polybutylene Terephthalate (PBT) |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Bulk |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 16 |
| Contact finish - post | Tin |
| Contact length - post | 0.126\" (3.20mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.264\" (6.70mm) |
| Contact finish thickness - post | 118.1µin (3.00µm) |
| Contact finish thickness - mating | 3.90µin (0.099µm) |
Product details
Frequently asked questions
What is the mating connector for 1-826631-6?
This header mates with AMPMODU Mod II receptacles such as the 826629 or 826630 series, which accept standard 0.025" square-post crimp terminals. The unshrouded design means the mating housing must provide its own retention.
Is 1-826631-6 RoHS compliant?
Yes, it is listed as ROHS3 Compliant.
What is the current rating of 1-826631-6?
Rated 5A per contact. Derate above the 105°C upper operating limit per the series derating curve.
