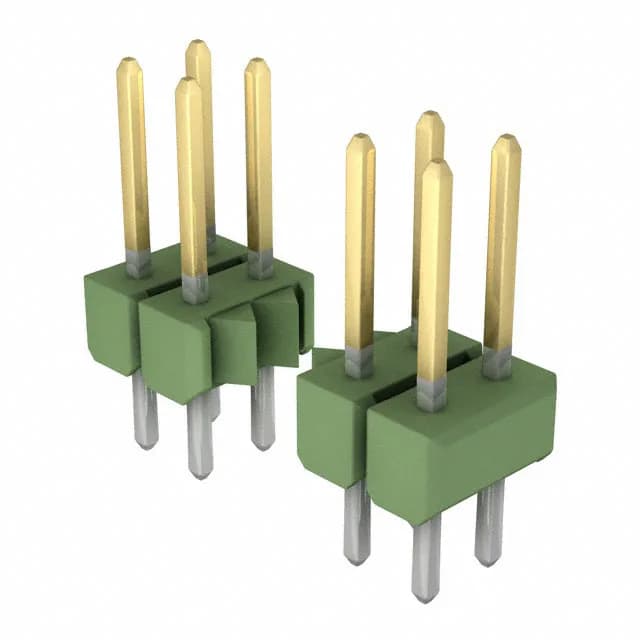

TE Connectivity AMP Connectors 1-826632-4
MPN1-826632-4
Active
$1.7456Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Current rating | 5A |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Green |
| Insulation height | 0.110\" (2.79mm) |
| Insulation material | Polybutylene Terephthalate (PBT) |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Bulk |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 28 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.126\" (3.20mm) |
| Overall contact length | 0.500\" (12.70mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.264\" (6.70mm) |
| Contact finish thickness - post | 118.1µin (3.00µm) |
| Contact finish thickness - mating | 3.90µin (0.099µm) |
