TE Connectivity AMP Connectors 1-826634-2 — Pin Headers, Sockets & Housings

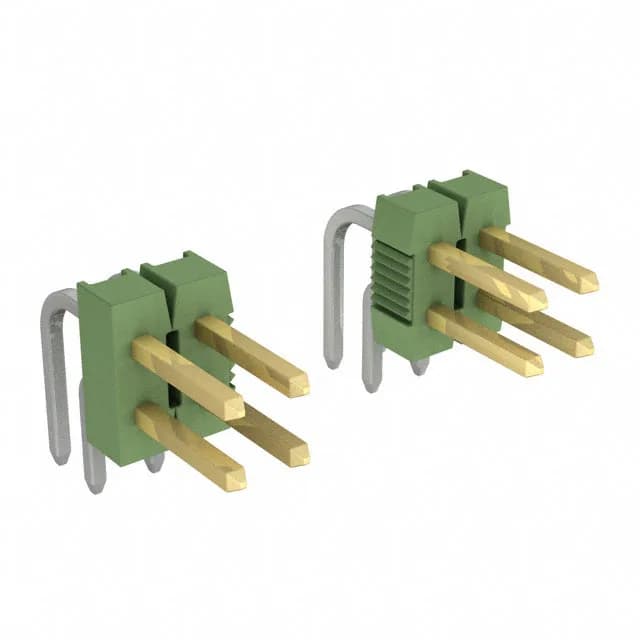

1-826634-2 TE AMPMODU Mod II Header, 24 Pos, 2.54mm

MPN1-826634-2
Active

TE Connectivity AMP Connectors AMPMODU Mod II unshrouded breakaway header, 24 positions, 2 rows, 0.100" (2.54mm) pitch, right-angle through-hole, gold-plated square pins, 5A rating, UL94 V-0 green PBT housing.

$1.8972Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 1-826634-2 datasheet (PDF)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

1-826634-2 key specifications
ParameterValue
SeriesAMPMODU Mod II
TypeMale Pin
MountingThrough Hole, Right Angle
Connector typeHeader, Breakaway
Fastening typePush-Pull
Current rating5A
Operating temperature-65°C ~ 105°C
Contact materialBrass
Insulation colorGreen
Insulation height0.219\" (5.56mm)
Insulation materialPolybutylene Terephthalate (PBT)
Material flammability ratingUL94 V-0

All specifications

1-826634-2 additional specifications
ParameterValue
StyleBoard to Board or Cable
PackageBulk
ShroudingUnshrouded
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions24
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin
Contact length - post0.126\" (3.20mm)
Contact finish - matingGold
Contact length - mating0.264\" (6.70mm)
Contact finish thickness - post118.1µin (3.00µm)
Contact finish thickness - mating3.90µin (0.099µm)

Product details

Board Layout Fit: Pitch, Rows, and Orientation

The 1-826634-2: The 0.219" (5.56mm) insulation height leaves clearance for components on the board under the mated connector.

Contact Rating and Plating: What the Numbers Mean

The brass square pins carry gold on the mating face (3.90µin / 0.099µm) and tin on the solder tails (118.1µin / 3.00µm). Gold flash on the mating surface resists oxidation during storage and supports moderate mating cycles; for high-cycle or corrosive environments, a thicker gold layer is preferred.

Mates with any AMPMODU Mod II receptacle or IDC socket that accepts a 0.100" pitch, 2-row, 24-position unshrouded header. Solder termination is through-hole, compatible with wave soldering processes.

Frequently asked questions

Is 1-826634-2 directly interchangeable with 1-826634-1?

The base product number 826634 covers both variants; the difference is in the suffix, which typically indicates plating or packaging. Without explicit manufacturer interchangeability documentation, verify the contact finish and dimensions against your application.

What is the maximum board thickness for 1-826634-2?

The contact length - post is 0.126" (3.20mm). For through-hole soldering, the board thickness plus solder fillet height must not exceed this post length. A typical maximum board thickness is around 0.062" (1.6mm) to leave adequate lead protrusion for a reliable solder joint.

Can 1-826634-2 be used in wave soldering processes?

Yes, the through-hole solder termination is designed for wave soldering. The tin-plated posts (118.1µin / 3.00µm) wet well with standard solder alloys. Ensure the board thickness and hole diameter match the post dimensions for proper capillary flow.
