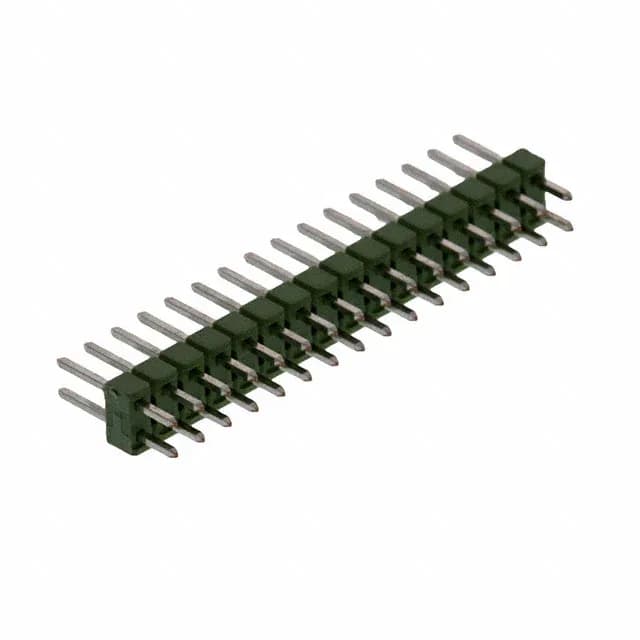

1-826942-6 TE Connectivity AMPMODU Mod II Header, 32 Pos

MPN1-826942-6
Active

TE Connectivity AMP Connectors AMPMODU Mod II header, breakaway, 32 positions, dual-row, 0.100" (2.54 mm) pitch, through hole, tin-plated male pins, 5 A, UL94 V-0, green PBT housing, active production.

$2.0900Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 1-826942-6 datasheet (PDF)
RoHSROHS3 Compliant
SeriesAMPMODU Mod II
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

1-826942-6 key specifications
ParameterValue
SeriesAMPMODU Mod II
TypeMale Pin
MountingThrough Hole
Connector typeHeader, Breakaway
Fastening typePush-Pull
Current rating5A
Operating temperature-65°C~105°C
Contact materialCopper Alloy
Insulation colorGreen
Insulation height0.110\" (2.79mm)
Insulation materialPolybutylene Terephthalate (PBT)
Material flammability ratingUL94 V-0

All specifications

1-826942-6 additional specifications
ParameterValue
StyleBoard to Board or Cable
PackageBulk
ShroudingUnshrouded
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions32
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin
Contact length - post0.126\" (3.20mm)
Overall contact length0.465\" (11.81mm)
Contact finish - matingTin
Contact length - mating0.228\" (5.80mm)
Contact finish thickness - post78.7µin (2.00µm)
Contact finish thickness - mating78.7µin (2.00µm)

Product details

32-Pin Dual-Row Breakaway Header for Board-to-Board and Cable Interconnects

The through-hole termination and 0.126-inch (3.20 mm) post length suit it for soldering into plated through-holes on a PCB. The UL94 V-0 PBT housing provides flame retardancy for equipment inside an enclosure.

With all 32 positions loaded, the header occupies a 32-pin dual-row layout — 16 pins per row — which defines the PCB drill pattern and routing density.

The square pin profile (0.025-inch square typical for this series) provides reliable contact with the receptacle's dual-beam or tuning-fork contact.

Frequently asked questions

Does 1-826942-6 have a right-angle version?

Right-angle versions exist in the AMPMODU Mod II series but require a different order code — check the series for a right-angle variant with matching pitch and position count.
