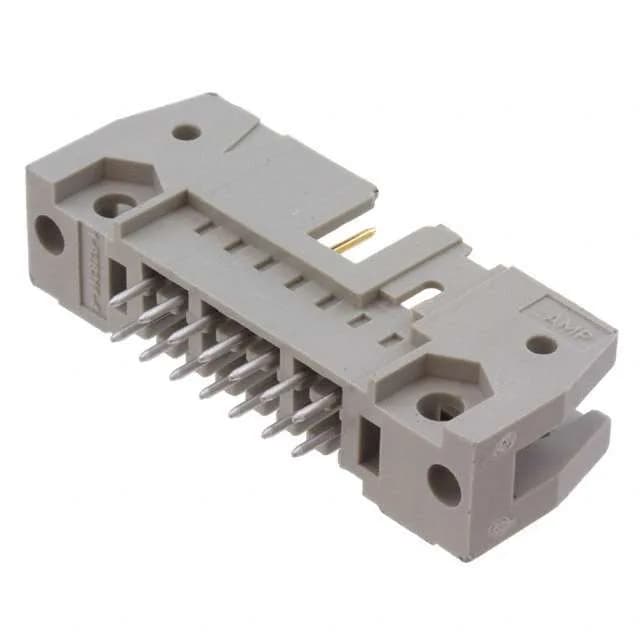

TE Connectivity AMP Connectors 1-828582-4
MPN1-828582-4
Obsolete
$1.4400Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | AMP-Latch |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Lock/Eject Hooks |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.543\" (13.80mm) |
| Insulation material | Polyester, Glass Filled |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Features | Mounting Flange |
All specifications
| Parameter | Value |
|---|---|
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Circular |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 14 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.118\" (3.00mm) |
| Overall contact length | 0.652\" (16.56mm) |
| Contact finish - mating | Gold or Gold-Palladium |
| Contact length - mating | 0.246\" (6.25mm) |
| Contact finish thickness - post | 118.1µin (3.00µm) |
| Contact finish thickness - mating | 31.5µin (0.80µm) |
