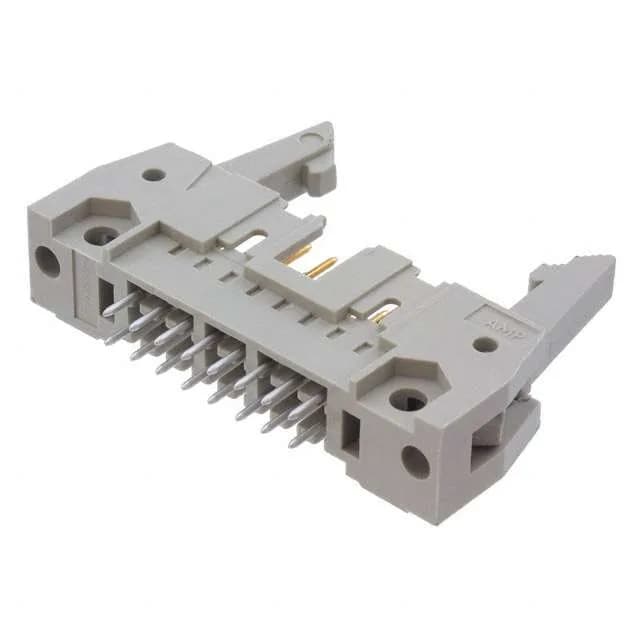

TE Connectivity AMP-Latch header, order code 1-828590-6, 16 positions, dual row, 0.100" (2.54mm) pitch, gold or gold-palladium mating contacts, through hole, solder termination, shrouded - 4 wall, latch lock/eject hooks.
| Parameter | Value |
|---|---|
| Series | AMP-Latch |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Lock/Eject Hooks |
| Contact material | Brass |
| Insulation color | Gray |
| Insulation height | 0.346\" (8.80mm) |
| Insulation material | Polyester, Glass Filled |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Features | Keying Slot, Mounting Flange |
| Parameter | Value |
|---|---|
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Circular |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 16 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.118\" (3.00mm) |
| Overall contact length | 0.652\" (16.56mm) |
| Contact finish - mating | Gold or Gold-Palladium |
| Contact length - mating | 0.246\" (6.25mm) |
| Contact finish thickness - post | 118.1µin (3.00µm) |
| Contact finish thickness - mating | 31.5µin (0.80µm) |
The 1-828590-6: The header is through-hole solder terminated and uses latch lock/eject hooks for retention.
The 1-828590-6 is classified Obsolete by TE Connectivity AMP Connectors. Availability is limited to existing surplus stock; quantities are confirmed at RFQ.
No pin-compatible alternative or official successor is listed by the manufacturer. The 1-828590-6 is a 16-position, 2.54mm pitch, dual-row shrouded header with latch lock/eject hooks — any replacement would require a board layout review.
